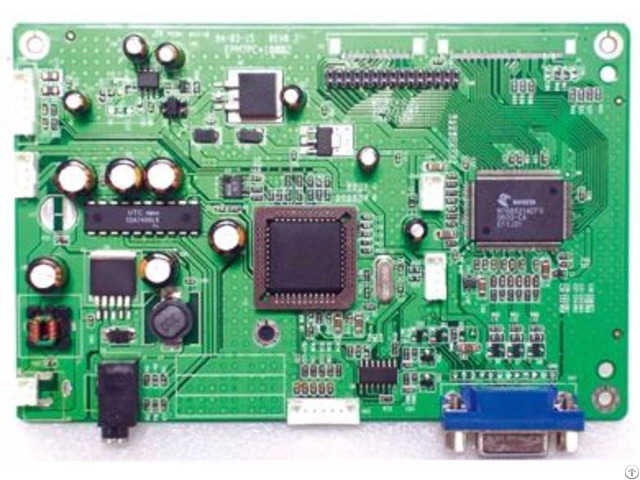

Vga Dvi Port - Taiwan

price: check with company for price

Vga Dvi Port

Products Photos Catalog Vga Dvi Port Photos Catalog

Video

Resolution : VGA up to 1440 ×900.

Horizontal Synchronization 30 KHz to 60 KHz.

Vertical Synchronization 55 Hz to 75 Hz.

Resolution : DVI-D up to 1440 ×900 .

Support HDMI V1.1(DVI connector input).

Output data type : LVDS 18bit, 24bit, 36Bit, 48bit.

POWER DC INPUT

Input for control board : 12Vdc

(a) Jack 5.5×2.1Φ

(b) Wafer 4P 2mm

Output for LCD panel : 5V / 12V.

VESA DPMS compliant.

Opertion Temperature

Warm up time ： ≧30min.

Operation Temperature : 0°C ~ 50°C

Storage Temperature : -20°C ~ 70°C

Operation Humidity : 10% ~ 80%

Storage T Humidity : 5% ~ 90%


Company Contact:


  • Phone: +886287681397

  • Address: 11F, No.183, Zhongshan Rd., Sec.1, Banqiao Dist., New Taipei City, 220696, Taiwan, Taipei , Taiwan

  • Email: Email


Published date: June 5, 2017

  • Business Description: EATECH provides customizable mounting system and display monitors with content management software; a complete and unique solution for your request!

    Founded in 1984, our company started out as an import and export company with cathode ray tube and chassis as our main products in the Americas.

    In 2000 we expanded into the world of LCD TFT and LED Backlight LCD monitors.

    Now with more than 10 years of experience in customizing LCDs monitors and troubleshooting electronic devices related issues, we are confident that we can provide you the best solutions.

    Please feel free to stop by and learn more about our company.
