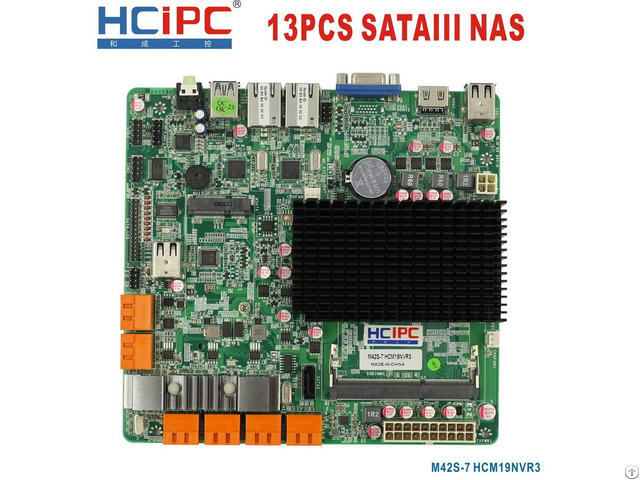

Hcipc M42s 6 And 7 Hcm19nvr3 Intel J1900 13sata3 Nas Motheboard Mini Itx Motherboard - China

Main Feature:

Intel J1800/1900 CPU

13SATA Ports supported

2 Giga lan

1* com ports

VGA+HDMI DISPLAY Specification

CPU M42S-7: HCM19NVR3: Intel Bay Trail–M J1900 Dual-CoreSocProcessors


(Buffer1M, 2.41GHZ-2.58 GHz)

Display Port Support VGA/HDMI/LVDS, support synchronous or asynchronousdisplay output

Memory 1*SO-DIMM, DDR3 Max up to 8GB

Graphics Integrated Intel HD Graphics

Audio RealtekALC662, support 6 sound channel output

LAN Onboard 2*Intel i221 1000 BaseT LAN, no-disk system and wake-on LAN

Storage Interface 13* SATA3, support 3Gb/s1*MINI-SATA(From Marvell 88SE9215)

Expansion Slot 1*Mini-PCIE(support M-SATA and WIFI)

USB 5*USB 2.0, 1*USB 3.0 Internal

I/O Connectors 1*4PIN Powersupply Socket;

1*20PINPowersupply Socket;

1*30PIN SATA_LED header;

1*FAUDIO header;

1*F_Panel header

13*SATA2 Headers

1* SYS_FAN

1 CPU_FAN

1* COM(R232) Header

2*USB Ports

1* USB Header

1*LAN LED Header Back Panel

Connectors 2*USB2.0

1*HDMI

1*COM

2*RJ-45 1000M LAN

1*USB2.0+1*USB3.0

1*Audio out

I/O Controller ITE IT8772E

BIOS AMI 64M BIOS, ACPI supported, support Call-up system

Form Factor 170*mm*180mm (Not mini ITX)

Work Environment

Work Temperature Working: -10-70°C Storage: 0~60°C

Work Humidity 10%~90% tock PCB Colour: Green, not Black.

Notice: The specifications of this product are subject to changes without prior notice.
