Dj 3399k Six Core Commercial Display Smart Android 8 1 System Board - China

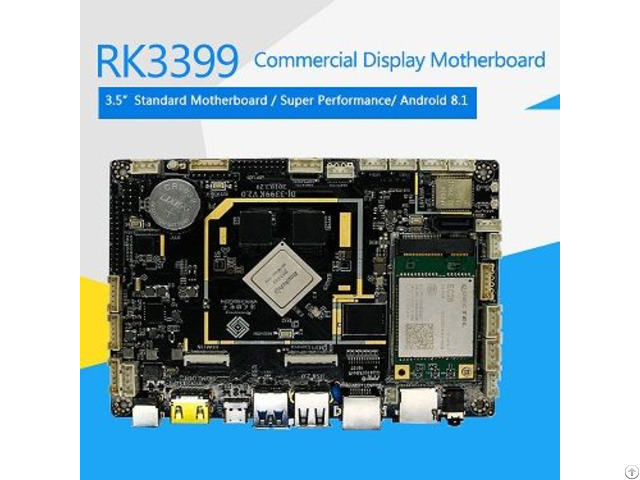

Standard 3.5" industrial commercial display motherboard, with excellent stability and reliability Based on Rockchip high performance RK3399 dual-core Cortex-A72 and quad-core Cortex-A53, frequency up to 1.8 GHz and 1.4 GHz respectively, integrated Mali-T864 GPU

This Motherboard has strong multimedia processing capability, supports 4K VP9 and 4K 10bits H265/H264 video decoding, up to 60fps, supports 1080P multi-format video decoding (VC-1, MPEG-1/2/4, VP8), supports 1080P video encoding, supports H.

264, VP8 format, support for video post-processor: de-interlacing, denoising, edge / detail / color optimization.

Dual VOP displays: resolution supports 4096x2160 and 2560x1600 respectively

Integrated dual USB3.0 Type-C interface, supports for Type-C display port, audio and video output

Onboard HDMI2.0 interface which supports 4K 60Hz display and HDCP 1.4/2.2

Onboard dual channels 24bit LVDS, VGA

Dual ISP pixel processing capability up to 800MPix/s, supports dual cameras’ data input at the same time.

Supports 3D, depth information extraction and other high-level processing

Built-in SATA interface, supports for storage expansion

Onboard Gigabit Ethernet port, supports 10M/100M/1000M adaptive

Built-in MINI PCIE 3G/4G interface with SIM card slot, supports various MINI PCIE 3G/4G modules

Built-in WIFI/BT4.0 combo module, supports WIFI 802.11b/g/n standard and BT v3.0/BT v3.0+HS/BT v4.0 communication

Perfectly support Android8.1 operating system, provides system call interface API DEMO code to support the upper application and APP development
