Android Motherboard Octa - China

Android Motherboard Octa, Android Mainboard

Product Features 1.3.5 inch standard ultrathin board type, Specially designed for self-service 2 - terminals, board carries LVDS/HDMI OUT/EDP/HDMI IN etc multiple interfaces.

Support double ethernet port, built in PCI-E 3G module, support HUAWEI, ZTE, LSAN and other PCI-E 3G/4G modules, support internet data and call.

Main Hardware Index

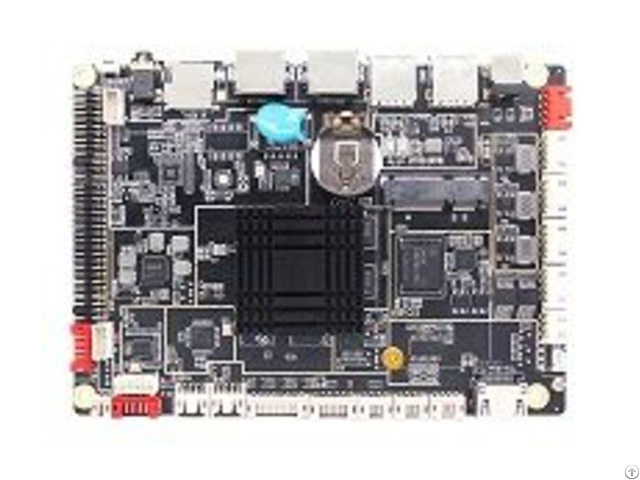

Model IoT-3288E V1.2

Size 146x104mm

CPU RK3288, quad core, main frequency 1.8GHz, Android 5.1.1

Internal Memory Standard configuration 2G(4G optional)

Built-in Storage Standard configuration 8G(16/32/64G optional)

Built-in ROM 2KB EEPROM

LVDS output 1 single/double channel, can drive 50/60Hz LCD panel directly

HDMI output 1, support 1080P@120Hz, 4kx2k@60Hz output

HDMI input Support HDMI IN(can select TF card slot)

eDP output Can drive many kinds of resolution LCD panel with eDP interface

Audio and Video ouput Support left and right channels output, built-in dual 4R/20W, 8R/10W amplifier

Earphone Support one channel earphone interface

USB2.0 interface 2*USB HOST, 4*USB Socket

Serial port 5 channels serial port (4*232, 1*TTL)

Others extended interface 1*IIC, 11*IO port, ADC and button interface

WIFI, BT Built-in WIFI, BT4.0

3G/4G PCI-E 3G/4G networks and voice calls

Ethernet 1, 10M/100M self-adapting Ethernet

USB to ethernet 1, 10M/100M self-adapting Ethernet (optional, or configurate to RS232 serial port )

GPS External GPS(optional)

RTC Real Time Clock Support, Support Timing Switch

Company Contact:

• Posted By: Shenzhen Smart Device Technology Co., LTD

• Phone: +8675561662980

• Address: 4th floor, SSMEC Building, Shenzhen , Guangdong , China

• Email:

• Website: https://www.smartdevicetech.com

• Business Description: Shenzhen Smart Device Technology Co., LTD，which is a wholly owned subsidiary belongs to SSMEC Group，located in SSMEC Building Nanshan, Shenzhen collecting R&D, production, sales as one integrated enterprise.

  Founded in 2008, registered capital of 20 million yuan, existing staff of 100 people, the research and development personnel more than 70%.

  Seven years in the embedded product R&D and production experience, to ensure the company in the aspect of embedded products occupy absolute eading position in the market.

  Android advertising machine and motherboard market share first in China.

  The monthly shipments reached more than 60000 pieces.
