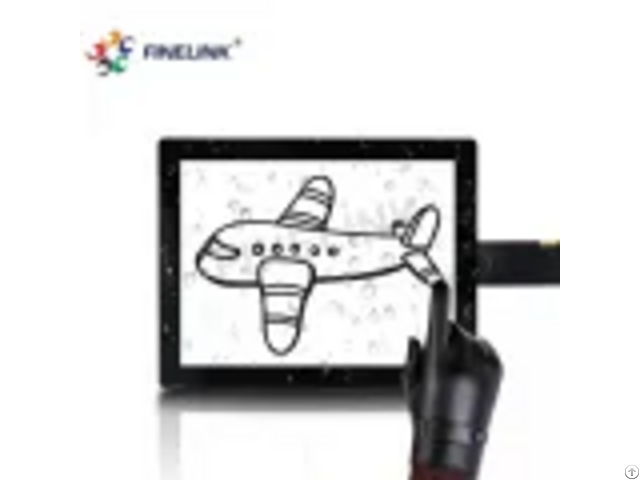

10.4 Inch Open Frame Pcap Glass Capacitive Touch Panel

This Projected Capacitive Touch Panel can be multi-touch (max to be 10 points touch).

Note1：In order to make a touch panel operate normally, please make sure that the host device is grounded.

Note2：All environmental characteristics listed as above all should be less than1 atmosphere.

Note3：Do not store a touch panel in direct sunlight.

Specification

Item 10.4 inch capacitive touch panel

Ratio 4: 3

Structure G+G

Type Capacitive

Touch controller EETI/ILITEK

Connection COB

Lens OD 245*192mm

Sensor OD 235*175mm

Cover glass(T) 2mm

SENSOR(T) 0.7mm

Surface hardness ≥6H

Transmittance ≥85%

Touch points 10 Points

Operating Temperature -20℃~+60℃

Interface Type USB, RS232, I2C

Color Black, White, Transparent, colors optional Operating system WinXP/7/8/10, Android, IOS, Mac, Linux

Application Industrial, medical, banking, consumer, military, education, HMI

Warranty 12 Months(3 years maximum)
