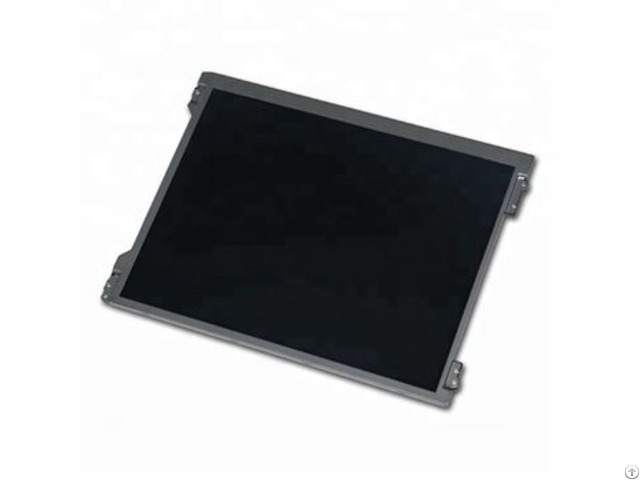

High Brightness 12 1 Inch Tft Lcd Wide View Angle Wider Operating Temperature G121xn01 V0 - China
price: 90.00 Dollar US$
Model G121XN01 V0
Brand AUO
Diagonal Size 12.1 inch
Pixel Format 1024(2)×768(2) [XGA]
Active Area 245.76(H)×184.32(V) mm
Bezel Area 250.8(H)×189.4(V) mm
Luminance 500 cd/m² (Typ.
)
Viewing Angle 80/80/80/80 (Typ.
)(CR≥10)
Support Color 262K/16.2M 70% (CIE1931)
Weight 495g (Max.
)
Frame Rate 60Hz
Type a-Si TFT-LCD, LCM
Configuration RGBW Rectangle
Outline Dim.
279(H)×209(V) ×9(D) mm
Treatment Antiglare, Hard coating (3H)
Contrast Ratio 700: 1 (Typ.
) (TM)
Response Time 25/10 (Typ.
)(Tr/Td)
Operating Mode TN, Normally White, Transmissive
Light Source WLED [9S2P], 50K hours, With LED Driver
Touch Panel Without
Interface Type 20 pins LVDS (1 ch, 6/8-bit), Connector
Power Supply 3.3V (Typ.
)
Environment Operating Temperature: -30 ~ 85 °C ; Storage Temperature: -30 ~ 85 °C
Company Contact:
- Posted By: TONYA DISPLAY LIMITED
- Phone: +86 18665360186
- Address: Longhua , Shenzhen , Guangdong , China
- Email:
Published date: April 27, 2019
- Business Description: Tonya Display Limited has been dedicating to be a professional manufacturer, designer, exporter of small & middle TFT-LCD modules related products since her establishment.
We have been manufacturing, developing TFT-LCD modules from 2.5 inch to 65 inch and driving boards with CVBS, VGA, HDMI and DVI input to be more suitable for Automotive.
Transportation, Portable TVs, Portable DVDs, GPS.
Marine Electronics, Test & Measurement Equipment, Handheld Devices, Industrial Process Control and Medical applications etc.
