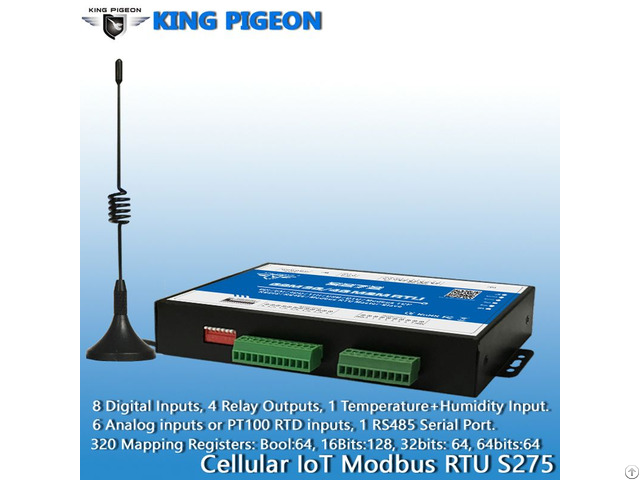

S275 King Pigeon Rs485 Modbus Rtu Scada System Iot M2m Gateway - China

Model no：S275 The Cellular IoT Modbus RTU supports transparent data transmission and performs as Modbus Slave over GPRS/3G/4G/NB-IoT network and RS485 serial port.

Moreover, the Cellular IoT Modbus RTU can be used as Modbus RTU Master to reading smart meters, I/O modules, PLC, and converts to SMS alert once triggered the threshold value, or transmit data to remote server over GPRS/3G/4G/NB-IOT network.

Compatible Modbus TCP and MQTT IoT Protocols, can intergrate to the KPIIOT IoT Cloud Platform or other IoT Cloud Platforms or SCADA or OPC servers.

1 - Can be operated from anywhere, no distance limitation; 2 - Quad band 850/900/1800/1900Mhz GSM GPRS Module inside.

3 - 3G/4G/NB-IoT Modules are optional; 4 - Modular design, can easily upgrade the cellular module if network upgrade; 5 - Embedded ARM® Cortex™-M4 32 Bit RISC Core, 168 MHz inside, RTOS system, reliable performance with in-built watchdog; 6 - Wide range power supply 9~36VDC with over voltage and phase-reversal protection; 7 - 8 digital inputs, compatibles dry and wet contact, one of it can be used as pulse counter; 8 - 6 analog inputs, 12bit resolution, compatibles 0/4~20mA, 0~5V, can change to PT100 Resistance Temperature Detectors; 9 - 4 relay output (5A/30VDC, 5A/250VAC), compatibles pulse outputs; 10 - 1 ambient sensor input for monitoring onsite temperature and humidity; 11 - Inbuilt inter-lock logic programmer and powerful timer program function; 12 - Resend the data while communication failure and alert to users by SMS; 13 - Inbuilt TCP/IP protocol stack, supports cloud, APP and web server applications.

14 - Supports Modbus TCP protocol, can integrate to SCADA, HMI, DSC directly.

15 - 1 RS485 port, supports Modbus RTU Master and Slave, Max.

320 I/O tags can be used to extend I/O ports or meters; 16 - Supports SMS Alert when I/O triggered or recovery, and external power lost or recovery; 17 - Provides 1 channel 9~36VDC power source output for external device, saving wiring cost; 18 - Up to 10 SMS Alert and dial numbers, can program to receive specified alarm message.

19.10 authorized numbers can switch on/off device with a free charge call at the specified time; 20 - Inbuilt 8G SD card to save up to 100000 historical data and events; 21 - Inbuilt large capacity automatically rechargeable backup battery; 22 - Industrial class design suitable for long time work applications; 23 - using metal shell, protection class IP30 - Metal shell and system security isolation, especially suitable for industrial applications in the field; 24 - L175 * W88 * H30mm, compatible wall installation and DIN35mm industrial rail installation.
