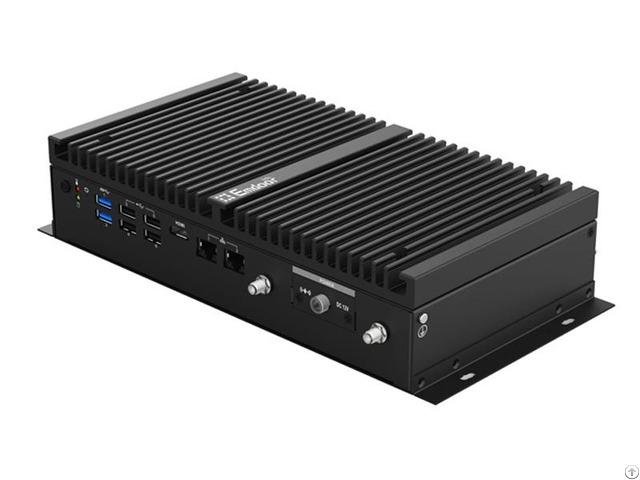

Intel Core I5 Industrial Fanless Mini Box Pc - China

Intel Core i5 industrial fanless mini box pc

PRODUCT FEATURES

1).

Industry Solutions/Products Usage:

-Retail, Services, Office, Business, Smart Home, Smart Factory

2).

Main Points:

- Intel® Core™ i5-8250U (Kaby Lake-R) /Linux/Windows 10 Home/IoT

-Fanless design / Network wakeup / Hardware Watchdog

-eMMC/ SSD/ HDD/ RS232x4/ GBEx2/ USBx6/HDMI/VGA/DIO

We can provide: rugged handheld, industrial PDA, Android rugged handheld, rugged tablet PC, 8 inch Rugged Tablet PC, Rugged notebook, Windows 10 rugged notebook, Industry Fanless Mini PC.

SPECIFICATION

CPU Intel® Core™ i5-8250U (Kaby Lake-R)

OS Linux / Windows 10 Home/IoT

RAM 4GB/8GB DDR3L

ROM Standard eMMC5.0 32GB/64GB/128GB/256GB/512 GB

SATAⅢ M.

2 2280 SSD 64GB/128GB/256GB/512GB Optional

SATAⅢ 2.5 inch 5/ 7/ 9.5mm Optional

WiFi intel 3165 M.

2 2230 / IEEE 802.11abgn/ac/d/e/i/h/w

Bluetooth 2.4G/5G Dual Mode Bluetooth 2.1, 2.1+EDR, 3.0, 4.0, 4.1, 4.2 (BLE)

3G/4G HUAWEI MU709s miniPCIE Optional

Ethernet 10M/100M/1000Mbps Intel i210-IT GBE, support Wake On Lan

I/O Ports USB3.0 Type-A x4, HDMI 1.4A Type A x1, VGA DB15 x1, RJ45 x2, RS232 DB9 x3, 8bit DIO DB9 x1, Line-in 3.5mm Phone Jack x1, Line-out 3.5mm Phone Jack x1, 5.5/2.5mm DC Jack x1

SIM Full Demension SIM x2

Antenna Antenna1(WiFi+BTx1 ), Antenna2(3G/4G x2)

RTC/Watch dogs real-time clock, time-switch, auto restart after crashed

Extensive

connector miniPCIE x1, Extensive newtork port, USB, Serial port

Off & On Timer

Wake on Lan For Bios / For RJ45

Adaptor DC 12V/5A

Environment -20~70℃ (With wide temperature rang SSD or eMMC)

With HDD operating temperature is 0~45℃
