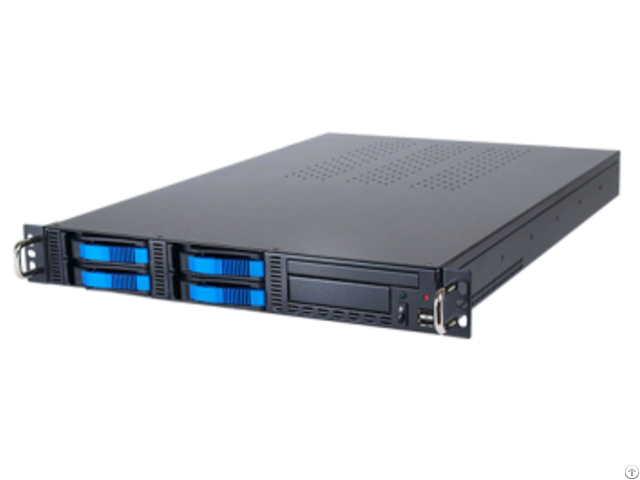

Storage Rackmount Chassis U1306m1000 - Taiwan

Features :

► Unique outward appearance design

Industrial grade aluminum drive front bezel device

Defer to the customer demand change color of front bezel handle

Recognize the Raid position using rubber cap

Fiber optical drive tray status indicator

► Effective cooling system

5 x 4cm ball bearing fan provide validated thermal solution

1 x 9cm rear-mounted blower fan optimize airflow

► Firm main body structure & maximum drive capacity

Durable handle may draw out more than 10, 000 of times

3.5”hot-swp x 4, exposed 3.5”x 1, slim DVD ROM x 1, internal 2.5” x 1

single / multilane SATA / SAS backplane option

Front access USB connector x 2

► Easy installation and maintenance

Modular tray device

Support ATX standard I/O plate

Support up to EATX ( 12” x 13”)

Manage Cable in order

Specification

1 - Model NO.

U1306M1000

2 - Standard EIA-RS310D

3 - Dimension (W x D x H) 481mm x 630mm x 1.3U (18.9” x 24.8” x 2.25”)

4 - Material SGCC / 1.2mm thickness

5 - Backplane SATA 3G, SAS, SATA Multilane

6 - M/B Extended ATX ( 12” X 13”)

7 - Drive bays 3.5”hot-swap x 4, exposed 3.5”x 1, slim DVD ROM x 1, internal 2.5” x 1

8 - Coolings 5 x 4cm ball bearing fan (middle) + 1 x 9cm blower (rear)

9 - Indicators Power, HDD LED

10 - Controls Power on/off, system reset, USB port x 2, 11 - Expansion 2 x PCI slots (full height & length)

12 - Power Supply 1U 350W/400W/500W PSU
