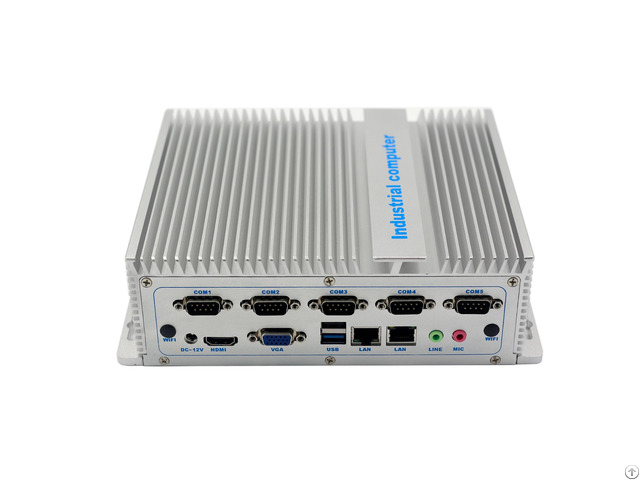

Hcipc B104 3 Hnbox 301 C1037 Fanless Industrial Pc - China

Feature: Ø All-aluminum fanless design, to protect the system mute, dust-proof, stable and reliable operation

Ø Intel® Atom J1900 quad-core CPU

Ø 6 COM (COM1, 3 supports 5V / 12V)

Ø Provide 4 USB 2.0 interface

Ø 2.5-inch hard drive can be installed

Ø Phoenix terminal DC-12V DC input support

Ø Support WINXP operating system

Inside without any cables / Fanless Fanless Model Inside Without Any cables.

B104-3 HNBOX-301 (J1900)Specification BareBone Configuration Can be selection

CPU Intel Atom J1900 Quad core SOC 2.0G, max 2.42Ghz RMA Provie 1 SO DIMM DDR3, Max 8G 2G/4G/8G

Graphics VGA+HDMI, Resolution 2048*1152, 60hz LAN 2x Realtek 8111E 10/100/1000M LAN Storage Provide 1PCS SATA for 2.5 Harddisk HDD or MSATA SSD

Expansion Provide 1PCS MINI PCI-E slot WIFI Mode/…

Front I/O 4USB, Powersupply stwich Back I/O Phonex 12V DC, 1*Line-out, 1xMIC-in 1/ 3*USB2.0, 1*USB3.0, 5*RS232, 1RS485, 1*GPIO 2*LAN, 1*HDMI+VGA Can selection WIFI 3G/4G

Powersupply Phoenix DC 12V Input or 12V DC, both work Work Temp.

-10℃-+60℃ Work Humidity 0%-95% Non-condensing state Prodcut Size 225*175*62MM Weight 2.5kg Package Box Size: 320*135*275MM / 3.5KG 13*5.5*11INCH

Case colour Titanium Grey OEM: Black…

Case Material High-quality all-aluminum Printed According connector and key OEM logos

System Win7, Win8, Win10, WES7, WES8 linux
