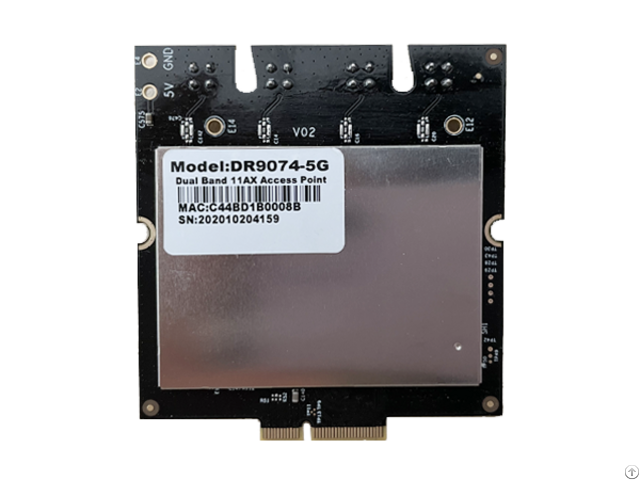

Dr9074 5g Pn02 1 ，qcn9074  11ax  4x4 M 2  - China

.

Features

Qualcomm Atheros QCN9074

5GHz, max 23dBm per chain, up to 4949Mbps

Single Band 5GHz 4x4 WiFi 6 (802.11ax) 4 spatial streams (4SS)

M.

2 E Key Interface

PCI Express 3.0 Interface Supports Dynamic Frequency Selection (DFS)

Absolute Maximum Rating Parameter Rating Unit

Operating Temperature Range -20 to 70 ºC

Storage Temperature Range -40 to 90 ºC

Operating Humidity Range 5 to +95 (non-condensing) %

Storage Humidity Range 0 to +90 (non-condensing) % Hardware Specifications Symbol Parameter

Chipset Qualcomm Atheros QCN9074

WLAN Host Interface PCI Express 3.0 Interface

System Memory 2Mbit serial I²C bus EEPROM

Standard Operating Voltage 5V

Operating Systems QSDK

Host Interface M.

2 E Key

Antenna Cable / Port 4 x MMCX Connectors, 4T4R

Frequency Range 5.15GHz-5.95GHz

Data Rates for WALN 5GHz, max 23dBm per chain, up to 4949Mbps

Channel Spectrum Widths for WLAN Support 20/40/80/160MHz at 5GHz

Modulation Techniques OFDMA: BPSK, QPSK, DBPSK, DQPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM, 4096-QAM

Temperature Range Operating: -20°C to 70°C, Storage: -40°C to 90°C

Humidity Operating: 5% to 95% (non-condensing), Storage: Max.

90% (non-condensing)

Certification TBD

Power Consumption TBD

Reference Design PN02.1

Dimensions (WxHxD) 57mm x 63mm x 6mm
