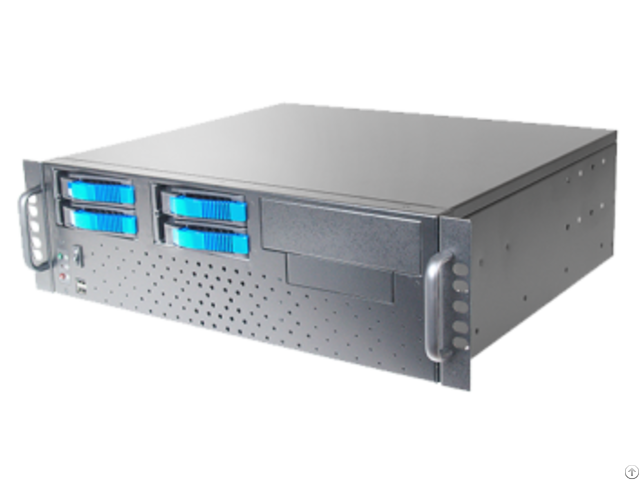

3u Rackmount Chassis U3006m2000 - Taiwan

Features :

► Unique outward appearance design

Industrial grade aluminum drive tray handle device

Defer to the customer demand change color of drive tray handle

Recognize the Raid position using rubber cap

Fiber optical drive tray status indicator

► Effective cooling system

2 x 5cm ball bearing cooling fans (front)

2 x 5cm ball bearing fan on rear to optimize airflow (rear)

► Firm main body structure & maximum drive capacity

Durable handle may draw out more than 10, 000 of times

5.25” x 1, 3.5”hot-swap x 4, internal 3.5”x 2, 3.5” FDD x 1

single / multilane SATA / SAS backplane option

Front access USB connector x 2

► Easy installation and maintenance

Support up to ATX ( 12” x 9.6”)

Manage Cable in order

provide elbowroom assembly

Options for 14 slot rear plate

Specification

1 - Model NO.

U3006M2000

2 - Standard EIA-RS310D

3 - Dimension

4 - (W x D x H) 481 x 380 x 3U mm

5 - Material SGCC / 1.2mm thickness

6 - M/B ATX ( 12” X 9.6”)

7 - Drive bays Exposed : 5.25” x 1 / 3.5” x 1 / hot-swapped 3.5” x 4 (SATA2/SAS)

8 - Internal : 3.5” HDD x 2

9 - Coolings Front : 5cm cooling fan x 2

10 - Rear : 5cm cooling fan x 2

11 - Indicators Power, HDD LED

12 - Controls Power on/off, system reset, USB port x 2

13 - Power Supply 1U or 2U Single PSU
