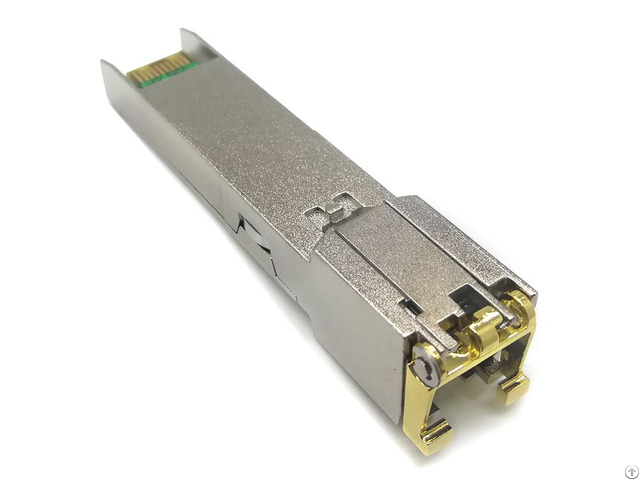

Autosense 10 100 1000base T Sfp Copper Rj 45 100m Transceiver Module - China
price: 15.00 Dollar US$
Speed 10/100/1000Base-TX
Wavelength N/A
Distance 100m
Interface RJ-45
Media Copper
Form Factor SFP
Protocols MSA Compliant
Temperature Range 0 to 70 UPONCOMM 10/100/1000BASE-T copper SFP transceiver is high performance, cost effective module compliant with the Gigabit Ethernet and 10/100/1000BASE-T standards as specified in IEEE 802 - 3-2002 and IEEE 802.3ab, which supporting 10/100/1000Mbps data- rate up to 100 meters reach over unshielded twisted-pair category 5 cable.
This module supports 10/100/1000 Mbps full duplex data-links with 5-level Pulse Amplitude Modula-tion (PAM) signals.
All four pairs in the cable are used with symbol rate at 250Mbps on each pair.
It provides standard serial ID information compliant with SFP MSA, which can be accessed with address of A0h via the 2-wire serial CMOS EEPROM protocol.
The physical IC can also be accessed via 2-wire serial bus at address ACh.
