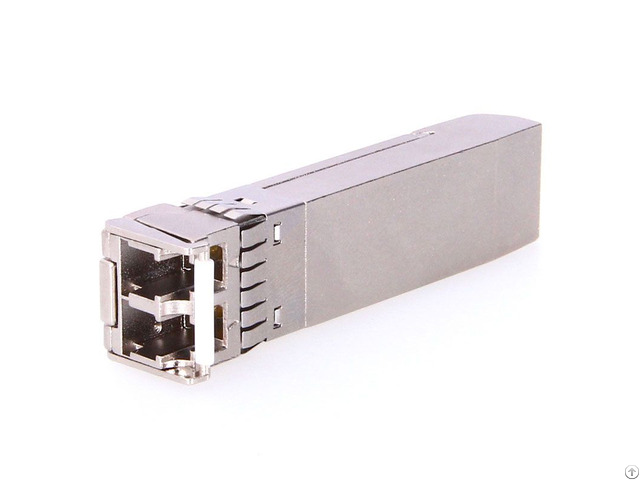

10gbase Zr Zw Sfp 1550nm 80km Dom Transceiver Module - China
price: 210.00 Dollar US$
Speed 10GBase-ZR
Wavelength 1550nm
Distance 80km
Interface LC Duplex
DOM Support YES
Media SMF
Optical Componets EML/APD
TX Power 0~5dBm
RX Power <-24dBm
Form Factor SFP+
Protocols MSA Compliant UPONCOMM 10G-ZR SFP is a very compact 10Gb/s optical transceiver module for serial optical communication applications at 10Gb/s.
It converts a 10Gb/s serial electrical data stream to 10Gb/s optical output signal and a 10Gb/s optical input signal to 10Gb/s serial electrical data streams.
The high speed 10Gb/s electrical interface is fully compliant with SFI specification.
The high performance 1550nm EML transmitter and high sensitivity APD receiver provide superior performance for Ethernet applications at up to 80km links.
Company Contact:
- Posted By: UPONCOMM Technologies CO., Limited
- Phone: 0755-8486-2464
- Address: 4/F, Bldg A, Bainianjia Building, Bantian, Longgang District, , Shenzhen , Guang Dong, China
- Email:
- Website: http://www.uponcomm.com
Published date: November 15, 2019
- Business Description: UPONCOMM is a reliable and trusted manufacturer of networking connectivity solutions.
We design and produce the optical transceivers and other fiber optical products.
We are dedicated to providing the global customers the high cost-effective products and services for the telecommunication network and data transmission and access networks.
The main products of UPONCOMM include data center active & passive DACs, optical transceivers, MTP/MPO cabling system and the passive optical components.
