3g Wcdma Fixed Wireless Terminal - Taiwan

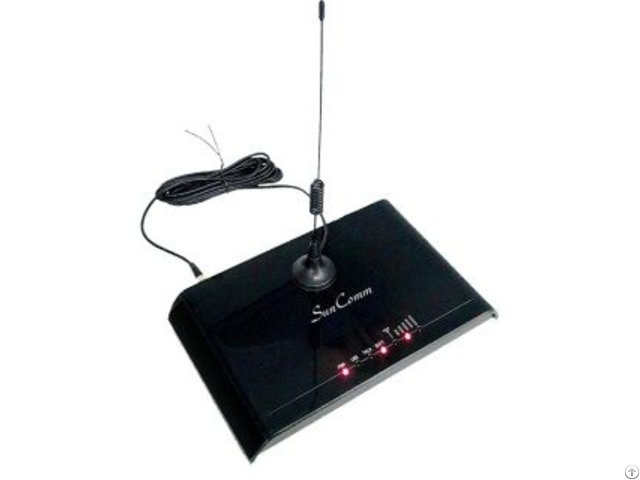

3G WCDMA Fixed Wireless Terminal SCG-1Q-3G 3G SCG-1Q-3G 3G FWT is a WCDMA to Analog Converter(single port, insert 1 sim card only), the device can produce a FXS line to allow a regular phone to be connected and used just like a local landline(PSTN) except your calls will go out the GSM network.

It can both receive and make calls.

The main application is: Connecting the RJ-11 FXS line to connect Ordinary telephone set for voice call; to connect PBX for call extensions; to connect billing systems for public phone use; to connect VoIP FXO gateway to realize VoIP call termination; to connect alarm system for security purpose, etc.

It is not a VOIP gateway, nor a GSM+VOIP gateway, It is a GSM Fixed Wireless Terminal that produces an analog FXS phone line .

Specifications:

1 - Air interface standard: SCG-1Q-3G is a wireless module which is designed for the global market.

It is a consumptive product; it can be designed in many kinds of applications which can work on HSPA/UMTS/EDGE/GPRS/GSM network.

2 - SCG-1Q-3G support the Bands as the following:

A.

3G Tri-Band UMTS/HSDPA/HSUPA (WCDMA/FDD): 850/1900/2100 MHz

B.

2G Quad-Band GSM: 850/900/DCS1800/PCS1900 MHz

C.

Phone interface: supply RJ-11 Phone Interface

D.

Hanging voltage: 45V

E.

Picking off voltage: 30mA / 41mA

F.

Dialing tone Frequency: 450Hz

G.

Antenna interface: Antenna amplifying>2.5db

H.

Sensitivity: <-104DBM

I.

Transmitting power<3W

J.

Color: White /Black (optional)

K.

AC-Adapter interface: Input: AC 110~240VAC 50~60Hz

L.

Output: 12DC 1A.

M.

AC-Adapter type: EU, US, AU, British can be optional
