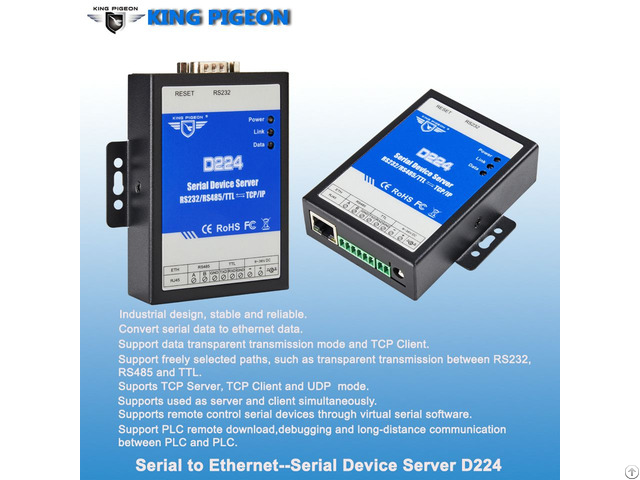

Traditional Industrial Device Serial To Ethernet Converter D224 - China

The D224 Serial Device Server provides is a useful device to convert RS485/232/TTL data to TCP/IP network, it also can be used as converting Modbus RTU to Modbus TCP, and performs as a serial port converter to create the communication from RS485 to RS232 or TTL, moreover, it can be used as a repeater for two serial device communication directly, e.

g: PLC to PLC.

The D224 Serial Device Server provides is a useful device to convert RS485/232/TTL data to TCP/IP network, it also can be used as converting Modbus RTU to Modbus TCP, and performs as a serial port converter to create the communication from RS485 to RS232 or TTL, moreover, it can be used as a repeater for two serial device communication directly, e.

g: PLC to PLC.

Features:

1 - Wide working voltage, support 9-36V DC power supply, interface is DC Q2.1 jack and terminal block, and with anti-reverse protection design; 2 - Built-in industrial grade ARM® CortexTM core, high performance, stable and reliable; 3 - Support 1 channel RS-232, 1 channel RS-485 and 1 channel TTL; 4 - Serial port baud rate supports 4800bps-128000 bps, supports None, Odd, Even check mode; 5 - Supports 1 channel RJ45 Ethernet port, with link and data indicator, built-in isolation transformer, up to 2KV electromagnetic isolation; 6 - Metal shell, protection class IP30, suitable for industrial control applications; 7 - The configuration software supports WIN XP, WIN 7, WIN 8 and WIN 10, friendly interface; 8 - Support static IP address or DHCP to obtain IP address automatically, and query the devices in the network through UDP broadcast protocol; 9 - Support custom device names for easy user identification; 10 - Support server domain name or IP address; 11 - Built-in TCP/IP protocol stack, support transparent transmission and Modbus RTU to Modbus TCP Protocol; 12 - Supports multiple working modes: TCP Server, TCP Client, UDP Server, and UDP Client; 13 - Supports up to 5 TCP/UDP Clients and 5 TCP/UDP Servers connections simultaneously; 14 - Supports programmable ”Handshake” and heartbeat package function, which can facilitate ID identification and data communication of the device on the cloud platform; 15 - Support automatically connect and reconnect the server after disconnection; 16 - Support serial port strategy function, data path can be program, for example: RS232 and RS485 bi-direction communication (RS232 to RS485), RS232 and server 1 bi-direction communication (RS232 to server 1); 17 - Can be used as a repeater for two serial device communications directly, e.

g: PLC to PLC; 18 - Support firmware upgrade through TTL, firmware update is more convenient; 19 - Small in size, 96mm*68mm*25mm, and supports wall mounting and DIN 35mm rail mounting.

Company Contact:

• Posted By: King Pigeon Communication Co.,Ltd

• Phone: 86075529063895

• Address: 3Floor,B block,Huafeng Robot Industrial Park,Bao an District ,Shenzhen,China, Shenzhen , China

• Email:

• Website: https://www.iot-solution.com

• Business Description: King Pigeon Communication Co.,Ltd. found in 2005 - Specialized in Cellular M2M RTU, Cellular IoT Gateway, LoRa Gateway, Industrial Remote IO Modules manufacturing and IoT Cloud Platform development, Provides One Step Complete IoT Solutions.

  Since its inception, King Pigeon has been dedicated to the improvement of IoT solution technology and the development of new and innovative IoT solutions to address the increasingly rigorous demands placed on worldwide.

  At present, most of our managers are technical and marketing experts, including 60 software and hardware engineers, most of them are major in IoT devices or many years experienced in IoT cloud platform designing.

  Meanwhile, we cooperate with many high technology partners and Institutes, as well as many professional Universities all the time.

  In order to provide high Quality products and services, we employ Total Quality Management (TQM) system, ensuring all products delivered are 100% qualified.

  Materials and finished goods are inspected in strict compliance with Standards.

  We carry out a multi-stage quality management system: Incoming Quality Control (IQC); In-process Quality Control (IPQC); Outgoing Quality Control (OQC); After-sales support for our customers.

  In management, we employ Integrated Supply Chain management (ISC), Approved Vendor List management (AVL), Design for Manufacture concept, Statistical Process Control (SPC), etc.

  So far, more than 220 IoT Devices are available, sold more than 1,000,000 IoT Devices to 200 countries and regions, and the growing trend still keeps at high speed.

  We confident that with our R&D, quality and service, we can supply more and more industrial IoT solutions to satisfy our customers.

  All of our products are with high performances and attractive features.

  We welcome OEM/ODM partners and guarantee to offer the high quality products as well as competitive prices.

  We'll try our best to cooperate with all partners from all over the world.
