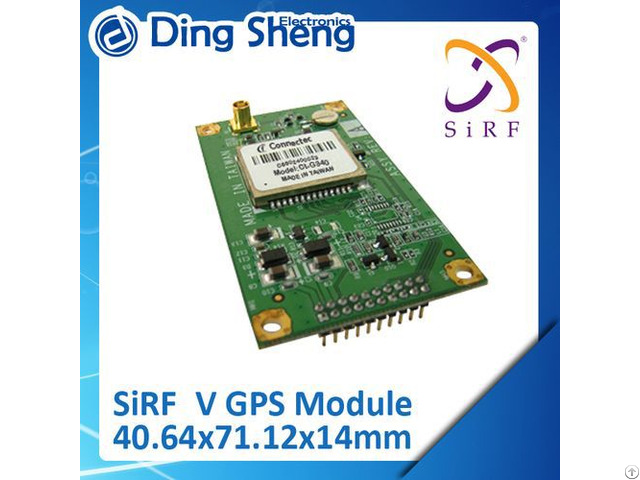

Sirf V Gps Engine Board With Mcx Sma Connector Ds G340 W Ct G530p - Taiwan

The DS-G340 w/Ct-G530P module is high performance, low power GNSS receiver, based on the SiRFStarVTM single chipset technology while providing fast time-to -first-fix.

Its far reaching capability meets the sensitivity requirements of car navigation as well as other location-based applications.

Ct-G340 w/Ct-G530P is designed to allow quick and easy integration into GPS-related applications, especially for compact size devices, such as:

- Fleet Management / Asset Tracking

- AVL and Location-Based Services Performance

- GPS, GLONASS, Galileo, BDS and SBAS reception for high GNSS availability and accuracy

- 52 track verification channels

- Active Jammer Remover, removes in-band jammers up to 80 dB-Hz

- Multimode A-GPS (Autonomous, MS-Based, and MS-Assisted), need operator support.

- SiRFGeoRecovTM Reverse EE makes positioning process being done under power saving mode.

- RF Metal Shield for best performance in noisy environments

- High sensitivity navigation engine (PVT) tracks as low as - GPS: -165dB, - GLONASS: -161dBm

- SBAS (WAAS, EGNOS, QZSS, MSAS, GAGAN)

- Tracks up to 8 CW jammers

- Enbedded CGEE/SGEE (With back-end server support) speed up TTFF a lot and makes cold start time to be around 20+ seconds.

- Reacquisition Time: 0.1 second Hardware and Software

- Based on the high performance features of the SiRFstarV™ low power single core logic.

- Adaptive micropower controller

- Only 50 to 500μA maintains hot start capability (core logic)

- <10mW required for TricklePower™ mode

- RoHS compliant (lead-free)

- Advanced navigation features

- Smart sensor supported by I²C interface

- External interrupt input for context change detection

- MCX vs.

RMCX or RSMA RF Connector select

- Dimensions: 40.64x71.12x1.4mm Advantage

- Built-in LNA.

- Built-in internal ROM and based on Firmware 5.5 - X

- It can remove in-band jammer up to 80db-Hz and track up to 8CW jammers, so the module can prevent GPS signal interference when design-in the electrical device with noisy electrical signal interferences such as Laptop, mobile phone, DSC, etc.

- Maintain tracking sensitivity as low as GPS @ -165dBm, GLONASS @ -161dBm, even without network assistance.

(SiRFstar III has only -159dBm sensitivity)

- Support SiRFaware™ technology

- Support adaptive “Micro Power Controller” power management mode.

- <10mW TricklePower™, so user can leave power on all day instead of power off.

- Suitable for battery drive devices that need lower power consumption application

- Ideal for high volume mass production(Taping reel package)

- Cost saving through elimination of RF and board to board digital connectors

- Flexible and cost effective hardware design for different application

- Embed CGEE (Client Generated Extended Ephemeris) that can capture ephemeris data from satellites locally and predicts ephemeris up to 3 days.

- So if the module was off within 3 days, it could complete positioning process with limited time just like hot start.
