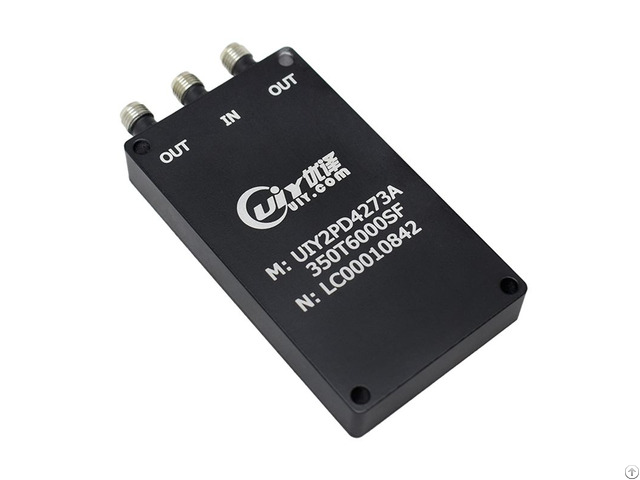

Rf Power Divider 2 Out 1 In 350 6000mhz - China
price: 100.00 Dollar US$
Model Number: UIY2PD4273A350T6000SF
Frequency Range: 350~6000MHz
Insertion Loss: 1.8dB (split 3dB)
Ripple: 1.2
Isolation: 16dB
VSWR: 1.5
Phase Unbalance: ±5°
Amplitude Unbalanced: ±0.4dB
Forward Power: 25W
Reverse Power: 1W
Connector Type: SMA-F
Temperature: -55~+85℃
Dimension: 42*73.5*11.5 mm
Frequency range 70MHz to 40GHz.
Military, space and commercial applications.
Low insertion loss, high isolation, high power handling.
Custom design available upon request.
Company Contact:
- Posted By: UIY Inc.
- Phone: +8675583748888
- Address: No. 8, lane 1, Xintun East Zone, Longgang District, 518172, Shenzhen , Guangdong Province, China
- Email:
- Website: https://www.uiy.com/
Published date: May 6, 2022
- Business Description: Professional Radio Frequency (RF) / Microwave Device Supplier
Professionally customized Radio Frequency (RF) / Microwave Components Manufacture.
UIY Inc.
was established in 2003 in Shenzhen, China, with the registered capital of 200 million yuan (about 32 million dollars).
It is an integrated enterprise, which includes research, production, marketing and service for the civilian and military microwave communications device.
The products are sold all over the world.
Product catalog:
Isolator / Circulator
Filter / Duplexer / Triplexer
Power Divider / Splitter
Hybrid Combiner / Directional Coupler
Coaxial Termination / Attenuator
Waveguide to Coaxial Adapter
Tx & Rx Multicoupler
Our products are in full compliance with RoHS, ISO9001 and ISO14001 international standard, with high-precision testing equipment and QC team, and we have established a strict quality control system.
We are committed to providing our customers with high-quality products for a long time.
