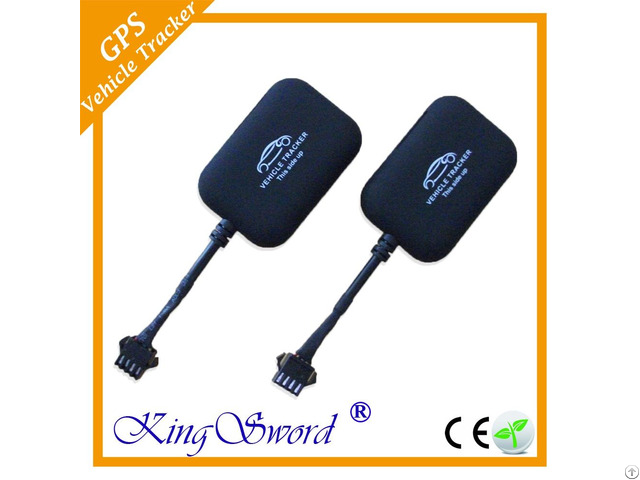

Gps Tracker For Vehicle - China

Specification:

Size: 40*58*14.5mm

Working voltage: 6 to 30V DC

Input fuse: 2A

Working temperature: -20 to 85°C

Humidity: 10% to 90% RH

CPU: MT6261 (260MHz) GSM module:

Band: 850/900/1, 800/1, 900MHz

Tally with: GSM phase 2/2+

Class 4 (2W, 850/900MHz)

Class 1 (1W, 1, 800/1, 900MHz)

GPRS multi-slot class 12

GPRS mobile station class B

Max RF output: 33.0, ±2dBm

Dynamic input range: -15 to -102dBm

Receiving delicacy: Class RBER ≤2% (-105dBm)

Frequency stability: >2.5ppm

Maximum frequency deviation: ±0.1ppm

RMS deviation: ≤5 degrees GPS module:

GPS chip set: U-BLOX 8

Frequency: L1, 1575.42 MHz, GPS L1 C/A.

Number of Channel: 56, SBAS L1C/A, QZSSL1C/A.

GPS sensitivity: -164dBm

Positioning accuracy: 5m

Reacquisition: 0.1 sec, average

Hot boot: 2 sec., average

Warm boot: 38 sec., average

Cold boot: 44 sec., average

Altitude limit: 18000 m

Velocity limit: 515 m/s I/O port: 4 I/O cables

Positive 6V to 30V, red wire

Negative, black wire Remote cut off engine power, yellow wire

ACC, engine start detecting, green wire Current:

Power-saving mode: 4mA

working current: 60 to 150mA

Charging current: <500mA maximum Installation:

Red wire connects to positive 6V to 30V

Black wire connects to ground

Yellow wire connects to relay device pin86, pin85 connects to ground.

Pin30 and 87A connect to oil pump line in series

Green wire connects to ACC or other alarm devices (that is to connect 6-24V storage battery or impulse to access ACC and alarm mode) Main features:

1 - Small size

2 - Accurate locating

3 - Easy installing

4 - Real-time Positioning & Tracking

5 - Blind area compensation

6 - Built-in battery

7 - Power saving mode

8 - Support UDP & TCP protocol

9 - Support GPS & Glonass system Advantage:

1 - Big size ceramic GPS antenna, good signal reception

2 - U-blox 7 chipset, accurate and low power consumption

3 - MCU to ensure system not stuck

4 - 14-bit G-sensor high sensitivity

5 - Self-recovery fuse to protect circuit from short circuit.

Main functions:

1 - GPS & A-GPS (LBS--location based service) 2 - Geo-fence

3 - Remote controlling oil & circuit

4 - ACC.

Engine ignition detection

5 - Vibration detecting alarm

6 - Over speed alert

7 - Audio monitoring (optional)

8 - External power cut alert
