Ds Gm451 Rs232 Gps Receiver Ps2 Connector - Taiwan

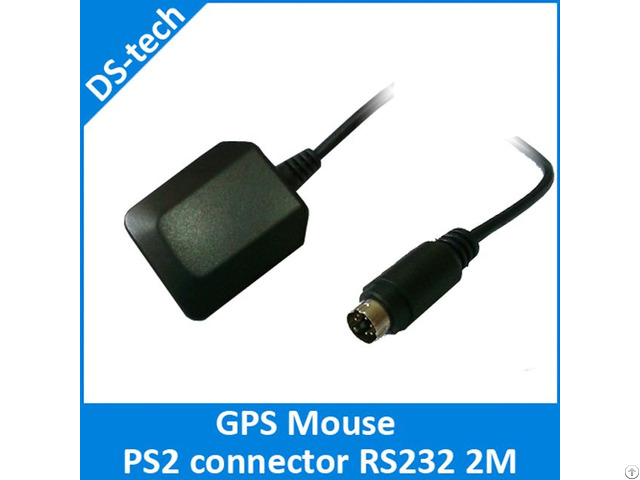

DS-GM451 U8 is a GPS Mouse receiver build-in well-known Ublox 8 GPS chipset.

DS-GM451 U8 provides customer high position, velocity and time accuracy performances as well as high sensitivity and tracking capabilities.

Customers benefit from the strength of both companies.

Thanks to the low power consumption technology, the DS-GM451 U8 is ideal for many portable applications such as PDA, Tablet PC, smart phone, automotive etc.

Features

- 72 channel Ublox M8 positioning engine.

- Ultra high sensitivity to -167 dBm.

- GPS L1C/A, SBAS L1C/A, QZSS L1C/A and Galileo E1B/support.

- Supports GLONASS and is ready for Galileo.

- Supports UART, USB and RS232 interface.

- Up to 10 Hz update rate.

- LED indicate location fix.

- Ultra low power consumption.

<10mW required for TricklePower™ mode

- Ultra miniature 29 x 29 mm dimension

- Operating temperature range: -40 to 85°C

- RoHS compliant (lead-free)

- Water proof (IPX6) Applications

- Automotive

- Personal/Portable Navigation (PDA)

- Geographic Surveying

- Sports and Recreation

- Marine Navigation

- Fleet Management Specifications

General

- GPS Chip : 　Ublox M8

- Frequency : 　L1, 1575.42MHz

- C/A Code : 　1.023 MHz chip rate

- Channels : 　72CH Sensitivity

- To -167Bm Tracking, Superior Urban Canyon Performance Acquisition Rate

- Cold Start : 　26 sec, average

- Cold Start ( CGEE* ) : 　25 sec, average

- Hot Start : 　1 sec, average

- Aided Start : 　2 sec, average Power

- Operation Power : 　3.3V~5.0 VDC

- Current Consumption : 　40mA(Tracking) / 37mA(Navigation) Accuracy

- Position : 2.5 meters Autonomous / 2 meters SBAS

- Time : 1 ms synchronized to GPS time Datum : 　WGS-84 Dynamic Conditions

- Altitude : <50, 000 m

- Velocity : <500 m/sec (1, 000 knots)

- Acceleration : <4g GPS Protocol

- Default : NMEA-0183 2.3 compatible with 3.0

- Band rate 9600 bps(default), 4800 Environmental

- Operating Temperature : -40°C to +85°C

- Relative Humidity : 5% to 95% non-condensing Device

- Connector : PS2 (standard) / MOLEX / M8 / Phone Jack

- Cable : 2M (standard) / 5M

- Size : 41.0 x 36.0 x 15.0 mm
