V9000 Series Test Modules

Comprehensive Ethernet Tester

Network Testing Device

V9000 Series Test Modules deliver complete network protocols testing and emulating functionality on BigTao series test platform.

V9000 Series may meet the test requirements of all kinds of networking devices in each stage of R & D, experiment, quality control, performance monitoringand productionline.

With support of larger number of streams, higher port density and larger traffic capture memoryV9000 Series offer a best cost-effectivetest solution.

V9000 Series support a full IPv4/IPv6 stack.

Each port can generate 512 streams with up to 4 variable domains per stream and simulate hundreds of thousands of interfaces and tens of millionsof realistic connections.

With plenty of protocol templates and customizable packet payload and rate, V9000 Series can provide complex protocoltest and emulation.

V9000 Series are supported in high performance chassis of BigTao200, BigTao6000 and BigTao12000, providing accuratechassis-to-chasnc hronization.

KEY FEATURES

Support QSFP+ on 40G ports

Support line-rate traffic generating and analysis

Integrated IPv4 and IPv6 stack, support layer 2-3 network testing

Support a variety of protocols emulation including OSPF, ISIS, BGP, IGMP, PPPoE, RIPv2, RIPng, etc.



Accurate and dynamic data rate regulation based on port and stream

Line-rate traffic capture with support of massage editing, filtering and searching

Embedded PC running Windows XP for separately operating

Multi-user login with easy remote access via a network

Support customized error packet generation

Graphical user interface for configuration, data capture and real-time analysis

Test suit based on RFC2544, RFC2889 and RFC3918

SPECIFICATION LIST

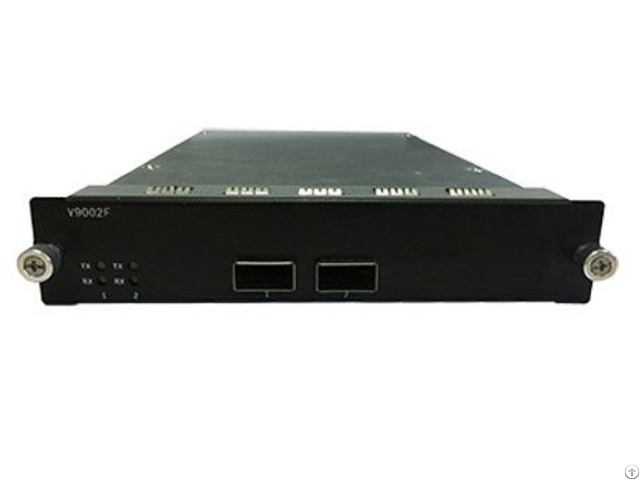

Model V9002F V9002A

Port Number 2 x 100G Port 2 x 100G Port + 12 x10G

Port Rate 100G/40G 100G/40G, 10G/100G(Combo)

Physical Status Indicators: Tx/Rx

Weight: 0.5kg

Peak power requirement: 100W Max Status Indicators: Tx/Rx

Weight: 0.6kg

Size: 271mm x 35.5mm x 180mm

Peak power requirement: 100W Max

Traffic Generation Traffic generating based on port and stream, per port have up to 256 different streams

Each stream provide up to 4 saltus step domain

Accurate data rate regulation based on port and stream, support dynamic data rate regulation

Each stream is capable of generating packets of IPv4, IPv6, TCP, UDP, TCP6, UDP6, Ping, IGMP, ARP, etc.

Each stream support multiple levels of VLAN and MPLS

Signature block is optional in each stream

Each stream supports user-defined packets

Traffic Statistics Statistics results can be displayed in the form of data table and chart

Each port can receive up to 1024 streams

Traffic statistics based on streams:

TX/RX frame count, TX/RX rate count, RX frame Sequence miss count, RX frame IP payload check errors count, Maximum, minimum and average SF latency count, Maximum, minimum and average CT latency

Traffic statistics based on ports:

TX/RX frame count, TX/RX stream count, TX/RX rate count, RX frame IP header checksum errors count, RX frame FCS errors count, frames through user-defined filters count

Traffic Capture RX data frame capture

TX/RX control frame capture

Frame capture based on filter templet

Decode hundreds of protocols

Support captured frame search according to specific conditions

Intuitive display of frames’ features such as source IP address, destination IP address, type of protocol and etc.

Protocol Emulation Integrated IPv4 and IPv6 dual stack, support ARP, NDP, Ping

Each port can simulate tens of thousands of interfaces and support sub-interfaces

Each port can simulate tens of millions of realistic connections

Protocol emulation on RIPv2, RIPng, OSPFv2, OSPFv3, ISISv4, ISISv6, BGP4, PPPoE Client, DHCP Client, IGMPv2, IGMPv3, GMRP, 802.1x, LDP and 802.3ah

Transmitting mode Continuous, Single burst, Multi burst, Time burst and Serialized

Software Support TeleExplorer test system, Test suit of RFC 2544/RFC 2889/RFC3918, TeleATT – automated Test system for product line

Others Easy-to-use graphical user interface

Support C++, C# and TCL API for customizing tests
