TestStorm Series Chassis

Network Performance Test

Network Testing Equipment

High performance Layer 2-7 unified platform delivering comprehensive Ethernet testing solutions for IP forwarding devices in each stage of R&D, experiment, quality control, performance monitoring and production line test

High performance Layer 2-7 unified platform delivering comprehensive Ethernet testing solutions for IP forwarding devices in each stage of R&D, experiment, quality control, performance monitoring and production line test.

With support of high performance 10G and 10/100/1000M load modules TestStorm can deliver an ideal cost effective L 2-7 protocol testing and emulation solutions.

Full IPv4 and IPv6 protocol stack support, per port simulate tens of millions of interfaces and realistic connections.

KEY FEATURES

Support SFP+, SFP, RJ45 interfaces on 10G and 10/100/1000Mbps

Support Layer 2-7 protocol emulations, provide a realistic network environment

Multi-user login with easy remote access via a network

Daisy chain of chassis with all ports synchronization

Graphical user interface for configuration, data capture and real-time analysis

Support TCL for automating test control

Test suit based on RFC2544, RFC2889 and RFC3918

SPECIFICATIONS

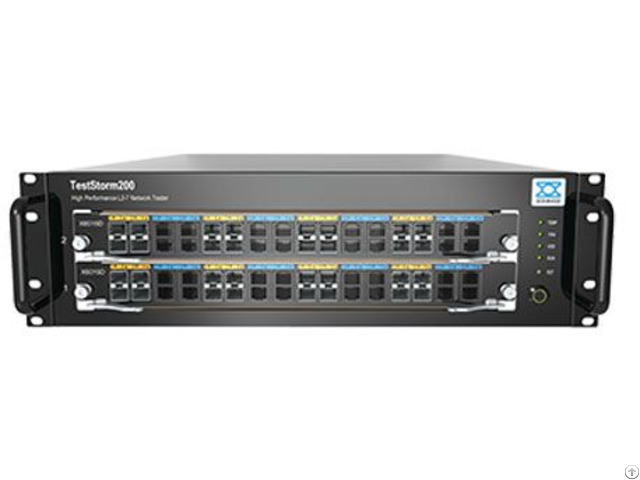

Model TestStorm200

Dimension 3U, 2-slot rack chassis

1000M Ports Up to 32

10G Ports Up to 8

Power AC 110~240V

CPU Intel dual-core HF CPU

System Control Reset button, Power switch

Status Indicators Power, Fan, Temperature, Power of slots

Temperature 0℃-50℃

Humidity 0-95%, RH

Load Module Available X6000 Series, X8000 Series

Size 489mm×393.5mm×110mm

Weight 13kg

X SERIES LOAD MODULE

High performance and full-specification Ethernet test modules running on TestStorm series platform, providing a full-function Ethernet test solution.

Armed with 36-core and more powerful processor, X series load modules deliver a unprecedented performance for complete Layer 2-7 network testing.

Classified by the port rate: - X6000 series support 10/100/1000 Mbps per port - X8000 series support 10 Gbps per port.

Model Port Number Port Rate Description

X6004D 8 RJ45：10/100/1000M SFP：100/1000M 4 RJ45 + 4 SFP ports, RJ45/SFP port (Combo), up to 4 port using at the same time

X6008D 16 RJ45：10/100/1000M SFP：100/1000M 8 RJ45 + 8 SFP ports, RJ45/SFP port (Combo), up to 8 port using at the same time

X6016D 32 RJ45：10/100/1000M SFP：100/1000M 16 RJ45 + 16 SFP ports, RJ45/SFP port (Combo), up to 16 port using at the same time

X8002F 2 SFP+：10G SFP：1000M 2 SFP+ ports

X8002F 4 SFP+：10G SFP：1000M 4 SFP+ ports
