P8000 Series Test Modules

Comprehensive Ethernet Tester

Lan Network Tester

P8000 Series Test Modules deliver professional network testing functionality on BigTao series test platform with high performance and availability.

P8000 series are specialized developed for comprehensive and automated testing of networking devices on production line, providing the best cost-effective testing solutions on 2nd Layer protocol testing

P8000 Series Test Modules deliver professional network testing functionality on BigTao series test platform with high performance and availability.

P8000 series are specialized developed for comprehensive and automated testing of networking devices on production line, providing the best cost-effective testing solutions on 2nd Layer protocol testing and analyzing.

P8000 series provide low cost testing solutions on BigTao platforms and meet test requirements of all kinds of networking devices in each stage of R & D, experiment, quality control, performance monitoring and production line.

With support of the basic test application--TeleExplorer , P8000 series provide a full IPv4/IPv6 stack.

Each port can generate 64 streams with independent configurations and statistics.

With support of the specialized automation test application--TeleATT, P8000 series deliver a fully automated testing solution which support asynchronous test for multiple DUTs.

P8000 series provide the test mode of aggregation, eachother and loopback with a variety of frame patterns such as Random length, Alternate length, and Fixed length.

P8000 series are supported in high performance chassis of BigTao200, BigTao6000 and BigTao12000, providing accurate chassis-to-chassis synchronization.

KEY FEATURES

Support SFP+ on 10 Gbps Support line-rate traffic generation and analysis

Support stream template as layer2, ipv4, ipv6, TCP, UDP, ICMP, IGMP and ARP.



Support customized data packet generation

Accurate data rate control based on port and stream

Statistics results can be displayed in the form of table and graph

Built-in PC running Windows XP for separately operating

Multi-user login with easy remote access via a network

SPECIFICATION LIST

Model P8000 Series

Port Number Up to 8 x 10G ports per module

Physical Status Indicators: Tx/Rx

Weight: 0.6kg

Size: 271mm x 35.5mm x 180mm

Peak power requirement: 48W Max

Traffic Generation Traffic generating based on port and stream, per port have up to 256 different streams

Each stream provide up to 4 saltus step domain

Accurate data rate regulation based on port and stream, support dynamic data rate regulation

Each stream is capable of generating packets of IPv4, IPv6, TCP, UDP, TCP6, UDP6, Ping, IGMP, ARP, etc.

Each stream support multiple levels of VLAN and MPLS

Signature block is optional in each stream

Each stream supports user-defined packets

Traffic Statistics Statistics results can be displayed in the form of data table and chart

Each port can receive up to 1024 streams

Traffic statistics based on streams:

TX/RX frame count, TX/RX rate count, RX frame Sequence miss count, RX frame IP payload check errors count, Maximum, minimum and average SF latency count, Maximum, minimum and average CT latency

Traffic statistics based on ports:

TX/RX frame count, TX/RX stream count, TX/RX rate count, RX frame IP header checksum errors count, RX frame FCS errors count, frames through user-defined filters count

Traffic Capture RX data frame capture

TX/RX control frame capture

Frame capture based on filter templet

Decode hundreds of protocols

Support captured frame search according to specific conditions

Intuitive display of frames’ features such as source IP address, destination IP address, type of protocol and etc.

Transmitting mode Continuous, Single burst, Multi burst, Time burst and Serialized

Software Support TeleExplorer test system, Test suit of RFC 2544/RFC 2889/RFC3918, TeleATT – automated Test system for product line

Others Easy-to-use graphical user interface

Support C++, C# and TCL API for customizing tests

MODULE CLASSIFICATION

Module Name Ports Per Module Connecter Type Single Rate

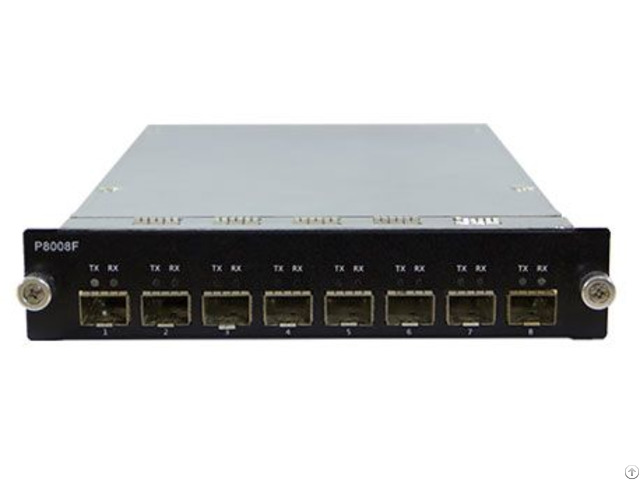

P8008F 8 10G SFP+ Fiber 10 Gbps

P8004F 4 10G SFP+ Fiber 10 Gbps

P8004C 4 10G RJ45 Copper 10 Gbps

P8002F 2 10G SFP+ Fiber 10 Gbps

P8002C 2 10G RJ45 Copper 10 Gbps
