Nams Rack Mounted - China

NAMS (Rack-mounted)

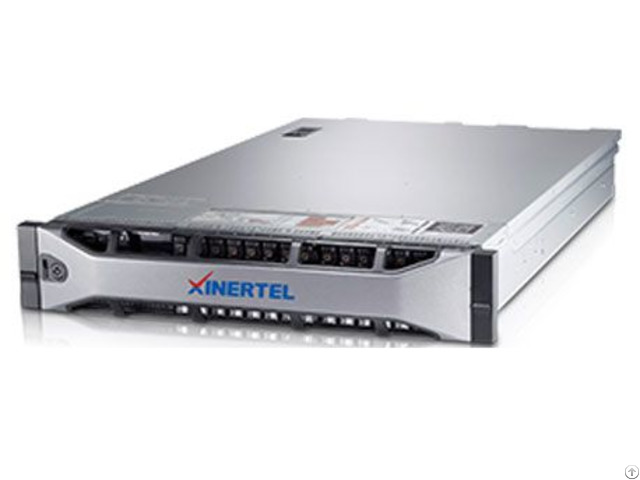

Rack Mounted Ethernet Tester

Ethernet Network Tester

xnSight Network & Application Management System utilizes intelligent deep packet capture and analysis technology with full wire-speed stream-to-disk storage and non-block packets analyzing.

It provides the real-time and historical analysis needed to support rapid problem isolation and user experience management in modern IP service delivery network

XnSight Network & Application Management System utilizes intelligent deep packet capture and analysis technology with full wire-speed stream-to-disk storage and non-block packets analyzing.

It provides the real-time and historical analysis needed to support rapid problem isolation and user experience management in modern IP service delivery networks.

The appliance is a passive device that is used to non-intrusively monitor key network links to provide the visibility into network and applications

Network & Application Management Center is grouped by the following components.

Appliance HW&SW appliance for packet capturing and analysis

Console Windows-based UI for network visibility, management and troubleshooting

KEY FEATURES

Integrated solution of data recording, traffic analysis and problem diagnostics

Comprehensive non-blocking end-to-end application monitoring and Key Performance Indicators (KPIs) generating

Wire-speed packet capturing Index powered fast packet retrieval

Embedded packet analyzer for ultra-fast packets decoding and troubleshooting decoding and troubleshooting

Flexible monitoring enabled by auto application detection and user-configurable traffic definition

Intuitive UI for network visibility, service quality and security alarms

Multiple Ethernet network interfaces, from 10/100/1000 Mbps to 10 GBE over copper or fiber

Flexible on-demand storage capacity provides right solution for various networks

Rack-mounted and portable appliances for different on-site deployment needs

PRODUCT MODEL

Model NS600 NS1000 NS2000 NS4000 NA10 NA20 NA30 NA40

Capture NIC 4*1G 4*1G 4*1G 4*1G 2*10G 2*10G 4*10G 4*10G

Analyze perf 600Mbps 1Gbps 2Gbps 4Gbps 10Gbps 20Gbps 30Gbps 40Gbps

Capture perf 600Mbps 1Gbps 2Gbps 4Gbps 10Gbps 20Gbps 30Gbps 40Gbps

Storage (TB) 1+2 2+4 2+8 2+12 8+24 16+48 24+96 48+192

Size 1U 1U 2U 2U 4U 6U 8U 10U

PRODUCT ATTRIBUTE

Packets Record The TALENET appliance captures and stores packets to disks and provides packet retrieval function to user.

This is very helpful when troubleshooting network issues and also for network forensics.

Packets Analyze and KPI The TALENET appliance can process the packets in real-time for providing the visibility of network traffic and quality.

It group packets in flows, recognize applications, calculate network and application performance indicators, generate alarms based on settings, baseline and DDOS pattern.

The analysis data is kept in the database for long time and provide network visibility for capacity planning, quality evaluation and security issues detection.

Data replay The TALENET NAPM system provides user to retrieval network KPI data and raw packets.

User can replay all of network KPI charts and tables and do deeply data mining from trending chart, to key service flows, finally get the raw packets.

Packets decode and diagnose The TALENET console has an embedded analyzer which is enhanced to decode packets in very high speed way, much faster than wireshark.

Also its protocols experts system will diagnose the issues and help the user to locate the root cause.

Application recognize The TALENET NAPM system supports user to define application in several ways.

Except traditional port based definition, user can use any form of the IP-PORT pair to define an application, which is much suitable for widespread use.
