Single Ended 1x2 Magneto Optical Switch - China

price: 100.00 Dollar US$

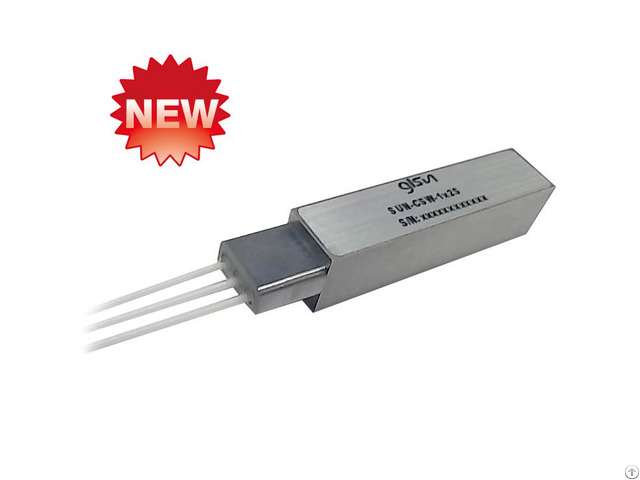

Single Ended 1x2 Magneto Optical Switch

Products Photos Catalog Ended 1x2 Magneto Photos Catalog

Single-ended 1x2 Magneto Optical Switch - Features

High switching speed

Better durability

High reliability

Low voltage drive

Fail-safe latching

Single ended 1x2 Magneto Optical Switch - Applications

Optical channel blocking

Configurable Add/Drop

System monitoring, Test&measurement

Fiber-optics sensing system

Single ended 1x2 Magneto Optical Switch - Specifications

1x2S

Wavelength Range: 1520~1580nm

Test Wavelength: 1550nm

Insertion Loss 2, 3: 1.0dB

Return Loss 2, 3 ≥50dB

Crosstalk 2 ≥40dB

PDL≤0.2dB

Repeatability≤±0.01dB

Operating Voltage: 5V

Durability≥ 30 Bllions Cycles

Switching Time≤100μs

Switching Type: Latching n/a

Optical Power ≤500mW

Operating Temperature: -5~ +70℃

Storage Temperature: -40 ~ +85℃

Relative Humidity: 5 ~ 95%

Fiber Type: G657A1

Dimension: (L )39x(W)9x(H)9.5

Note:

1 Customization

2 Within operating temperature and SOP.

3 Excluding connectors.


Company Contact:


  • Phone: 18607731315

  • Address: Guanglong S&T Zone, No. 8 High-tech Industry Park, Chaoyang Road, Guilin , Guangxi , China

  • Email: Email


Published date: August 30, 2016

  • Business Description: Product lines include Optical Switches, Free Space Isolator, MEMS VOA, CWDM/DWDM components, Optical Modules and Custom Optical test systems.
