Glsun Free Space Isolator Single Stage - China
price: contact company for price

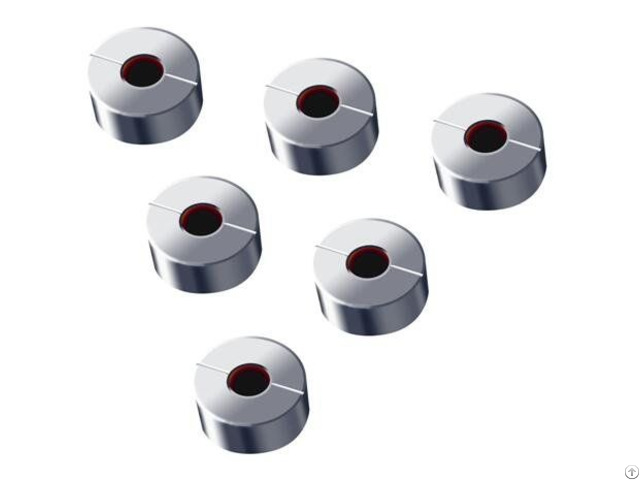

GLSUN Free space isolator is a passive optical device, which is used for protecting the light source and making the optical transmission stable.
Features
•High isolation and low insertion loss
•Polarization dependent
•Compact size
•RoHS 6/6 compliant
Applications
•Optical transmitter
•Laser diode package
Specifications (Standard) Single Stage
Parameters Unit P Grade A Grade
Center Wavelength (λc) nm 1310 or 1550 and CWDM
Peak Isolation (λ at 25°C) Min dB 40 38
Bandwidth Isolation (λc±15nm at 25°C) Min dB 32 30
Insertion Loss (λ at 25°C) Max dB 0.20 0.25
Bandwidth Insertion Loss(λc±15nm at 25°C) Max dB 0.30 0.35
Clear Aperture mm Φ0.9 or others
Optical Power Max mW 300
Operating Temperature ℃ -40 to +85
Storage Temperature ℃ -40 to +95
Company Contact:
- Posted By: GLSUN SCIENCE AND TECH CO.,LTD.
- Phone: 18607731315
- Address: Guanglong S&T Zone, No. 8 High-tech Industry Park, Chaoyang Road, Guilin , Guangxi , China
- Email:
- Website: https://www.glsun.com
Published date: July 27, 2016 - Modified date: July 27, 2016
- Business Description: Product lines include Optical Switches, Free Space Isolator, MEMS VOA, CWDM/DWDM components, Optical Modules and Custom Optical test systems.
