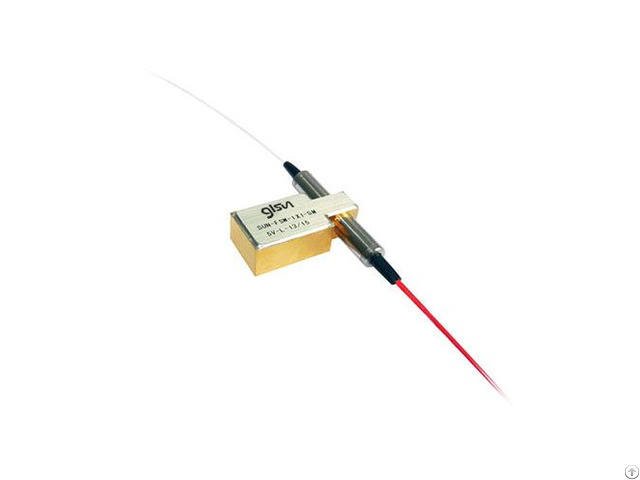

Fiber Optic Switch For Ftth - China
price: contact company for price
GLSUN 1*1 fiber optical switch has the function of blocking light path, usually used in blocking optical transmission, typically in FTTH.
Features
•Low Insertion Loss
•Wide Wavelength Range
•Low Crosstalk
•High Stability, High Reliability
•Epoxy-free on Optical Path
•Latching and Non-latching
Applications
•R&D in Laboratory
•System Monitoring
•OADM
•MAN (Metropolitan Area Network)
•Network Security and Monitoring
Specifications
Parameters Unit SUN-FSW-1×1
Wavelength Range nm 850±40 / 1300±40 1260 ~ 1650
Test Wavelength nm 850 / 1300 1310 / 1550
Insertion Loss 1, 2 dB Typ: 0.5 Max: 0.8 Typ: 0.4 Max: 0.6
Return Loss 1, 2 dB MM ≥ 30 SM ≥ 50
Crosstalk 1 dB MM ≥ 65 SM ≥ 70
PDL dB ≤0.05
WDL dB ≤0.25
Repeatability dB ≤±0.02
Operating Voltage V 3.0 or 5.0
Durability Cycles ≥ 10 Million
Switching Time ms ≤8
Optical Power mW ≤500
Operating Temperature ℃ -20 ~ +70
Storage Temperature ℃ -40 ~ +85
Company Contact:
- Posted By: GLSUN SCIENCE AND TECH CO.,LTD.
- Phone: 18607731315
- Address: Guanglong S&T Zone, No. 8 High-tech Industry Park, Chaoyang Road, Guilin , Guangxi , China
- Email:
- Website: https://www.glsun.com
Published date: July 27, 2016 - Modified date: July 27, 2016
- Business Description: Product lines include Optical Switches, Free Space Isolator, MEMS VOA, CWDM/DWDM components, Optical Modules and Custom Optical test systems.
