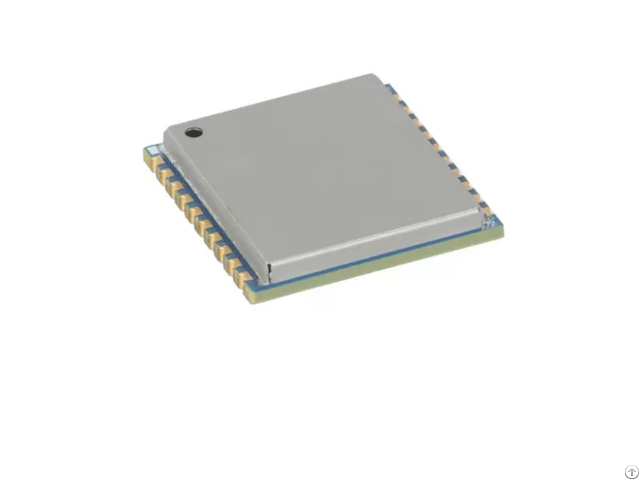

Ex10 Uhf Rfid Module 1 Port - China

Based on the E310 chip design, Gen2 Extension Ready, ultimate small size, low power consumption, low cost, SMD form factor, maximum RF output of 27dBm, real-time temperature monitoring, making it the best choice for various small desktop and mobile devices.

Additionally, sub-versions based on the E710 and E510 are available.

Ex10 UHF RFID Module FEATURES

Self-intellectual property;

Designed with IMPINJ E710/E510/E310 and support ISO18000-6C(EPC C1G2) protocol tag, featuring excellent multi-tag anti-collision functionality;

865~868MHz/902~928MHz frequency band(frequency customization optional);

FHSS or Fix Frequency transmission;

RF output power up to 27dbm(adjustable);

Positioning holes used to facilitate connection to external antenna;

Effective distance up to 6m*(with external 8dbi antenna and tag E41);

Maximum inventory speed up to 1000pcs/s (using E710) or 600pcs/s (using E510) or 350 pcs/s (using E310);

Tag buffer size up to 1000PCS@96bits EPC;

Low power dissipation with single +3.6~5.5VDC power supply;

Support RSSI;

Capable of continuous operation for 24 hours×365 days;

Support on-the-site firmware upgrading.
