D1x2 Optical Switch - China
price: 100.00 Dollar US$

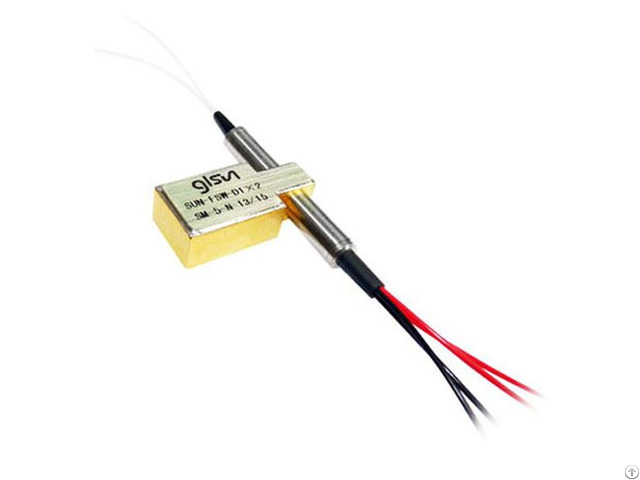

SUN-FSW-D1x2 Optical Switch, which is famous for its high performance, low insertion loss and compact dimension: (L)27.0x(W)12.6x(H)8.2mm.
It is an ideal component for OADM, OXC system monitoring and protection.
With compact package, it can be easy to integrate into a high density optical communication system.
D1×2 Optical Switch - Features
Low Insertion Loss
Wide Wavelength Range
Low Crosstalk
High Stability, High Reliability
Epoxy-free on Optical Path
Latching and Non-latching
D1×2 Optical Switch - Applications
R&D in Laboratory
System Monitoring
OADM
MAN (Metropolitan Area Network)
D1×2 Optical Switch - Specifications
Model No: SUN-FSW-D1×2
Wavelength Range: 850±40 / 1300±40; 1260 ~ 1650
Test Wavelength: 850 / 1300 ; 1310 / 1550
Insertion Loss 1, 2 : Typ: 1.0 Max: 1.5
Return Loss 1, 2: MM ≥ 30 SM ≥ 50
Crosstalk 1 : MM ≥ 35 SM ≥ 55
PDL ≤0.05dB
WDL ≤0.25dB
Repeatability ≤±0.02dB
Operating Voltage: 3V or 5V
Durability ≥ 10 Million Cycles
Switching Time ≤8ms
Optical Power ≤500 mW
Operating Temperature : -20 ~ +70℃
Storage Temperature: -40 ~ +85℃
Relative Humidity: 5 ~ 95%
Weight: 14g
Dimension: (L)27.0×(W)12.6×(H)8.2 ±0.2
Note:
1 Within operating temperature and SOP.
2 Excluding Connectors.
