2 2ba Optical Switch - China
price: 100.00 Dollar US$

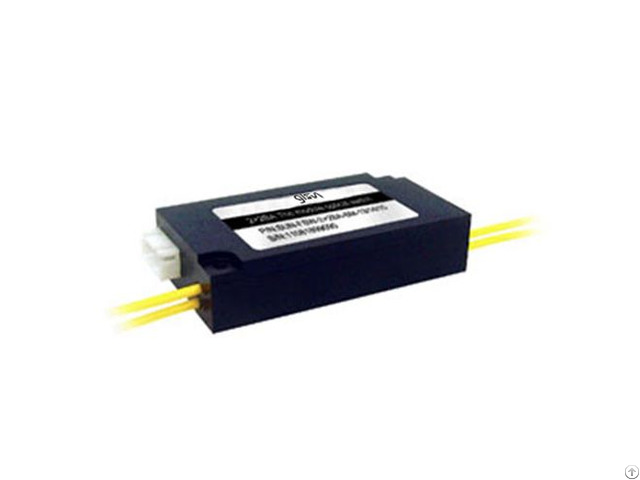

SUN-FSW-2×2BA Optical Switch, which is famous for its high performance, low insertion loss and compact dimension: (L)55.0×(W)30.0×(H)12.8 mm.
It is an ideal component for OADM, OXC, system monitoring and protection.
With compact package, it can be easy to integrate into a high density optical communication system.
2×2BA Optical Switch - Features
2×2BA Optical Switch - Micro Optical Switch
·Low Insertion Loss
·Wide Wavelength Range
·Low Crosstalk
·High Stability, High Reliability
·Epoxy-free on Optical Path
·Latching and Non-latching
2×2BA Optical Switch - Applications
·R&D in Laboratory
·System Monitoring
·OADM
·MAN (Metropolitan Area Network)
2×2BA Optical Switch - Specifications
Model No: SUN-FSW-2×2BA
Wavelength Range: 1260 ~ 1650nm
Test Wavelength: 1310 / 1550nm
Insertion Loss 1, 2:
Typ: 0.8 Max: 1.0
Return Loss 1, 2≥ 50dB
Crosstalk 1≥ 55dB
PDL≤0.05dB
WDL≤0.25dB
Repeatability≤±0.02 dB
Operating Voltage: 3Vor5V
Durability ≥ 10 Million Cycles
Switching Time≤8ms
Optical Power ≤500mW
Operating Temperature: -20 ~ +70℃
Storage Temperature: -40 ~ +85℃
Relative Humidity: 5 ~ 95%
Weight: 25g
Dimension
(L)55.0×(W)30.0×(H)1 2.8 ±0.2 nm
Note:
1 Within operating temperature and SOP.
2 Excluding Connectors.
Company Contact:
- Posted By: GLSUN SCIENCE AND TECH CO.,LTD.
- Phone: 18607731315
- Address: Guanglong S&T Zone, No. 8 High-tech Industry Park, Chaoyang Road, Guilin , Guangxi , China
- Email:
- Website: https://www.glsun.com
Published date: August 30, 2016
- Business Description: Product lines include Optical Switches, Free Space Isolator, MEMS VOA, CWDM/DWDM components, Optical Modules and Custom Optical test systems.
