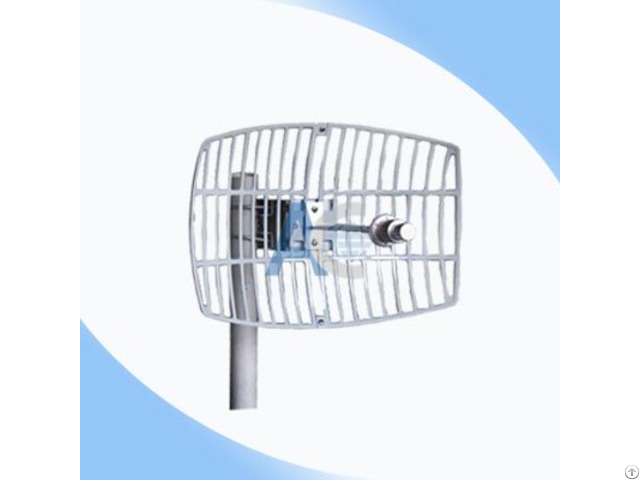

Wimax 3 5ghz Grid 19dbi Antenna - China
price: 15.00 Dollar US$
Electrical Frequency Range 3400-3600MHz
Band width 200MHz
F/B Ratio ≥20dB
Gain 19dBi
V.S.W.
R ≤1.5
Radiation Direction
Horizontal Beam width 12°
Vertical Beam width 16°
Polarization Vertical or horizontal
Lightning Protection DC-Grounded
Maximum Input Power 100W
Impedance 50Ώ
Connector N Female
Antenna Radome Material Aluminium
Mount way Pole
Diameter of Installation Pole Ø30~Ø50mm Mechanical Dimensions 300x400MM
Weight 1.4KG
Operating Temperature -40℃ to+70℃
Rated Wind Velocity 60m/s
RoHS Compliant YES
Company Contact:
- Posted By: Asian Creation Communication CO.,LTD
- Phone: +86-757-87668779
- Address: #12 Xing Ye 5 Road Nan Feng Da Dao,Sanshui, Foshan , Guangdong , China
- Email:
- Website: https://www.acantenna.com
Published date: June 28, 2017
- Business Description: antenna manufacturer, wifi antenna, 4g antenna, mimo antenna, 3g antenna, gsm antenna, gps antenna, 433mhz/315mhz antenna, pigtail cable and so on.
