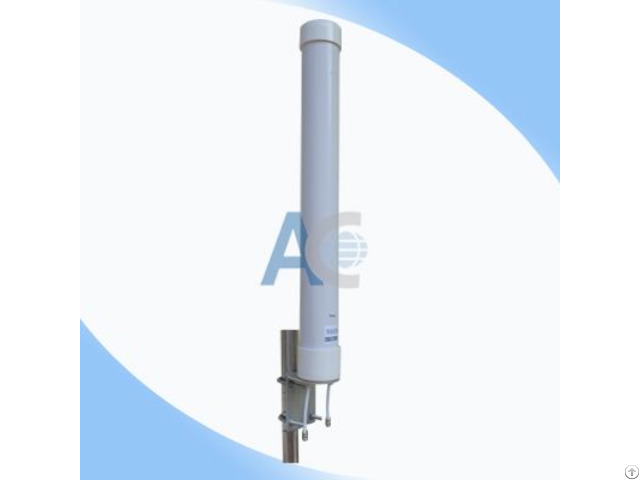

Wifi Mimo Dual Pol Omni Antenna - China
price: 35.00 Dollar US$
Electrical Frequency Range 2400-2500MHz
Band width 100MHz
Gain 2x13dBi
V.S.W.
R <1.8
Radiation Omni Direction
Horizontal Beam width 360°
Vertical Beam width 7°
Polarization Horizontal and Vertical Lightning Protection DC-Grounded
Maximum Input Power 100W
Impedance 50ohms
Connector 2XN Female
Cable Type And Length RG58U/100mm
Antenna Radome Material PVC
Mount way Pole
Mechanical Dimensions Ø80x890mm
Weight 1.8KG
Operating Temperature -40℃ to+80℃
Rated Wind Velocity 60m/s
RoHS Compliant YES
Company Contact:
- Posted By: Asian Creation Communication CO.,LTD
- Phone: +86-757-87668779
- Address: #12 Xing Ye 5 Road Nan Feng Da Dao,Sanshui, Foshan , Guangdong , China
- Email:
- Website: https://www.acantenna.com
Published date: June 28, 2017
- Business Description: antenna manufacturer, wifi antenna, 4g antenna, mimo antenna, 3g antenna, gsm antenna, gps antenna, 433mhz/315mhz antenna, pigtail cable and so on.
