Wholesaler Types Of Communication Towers - China

Wholesaler Types Of Communication Towers

Features:

1 - The seamless steel pipe is used as the column material, the wind load coefficient is small, and the wind resistance is strong.

2 - The tower column is connected by an outer flange, and the bolt is pulled, which is not easy to damage and reduces maintenance costs.

3 - The tower is arranged in a triangular shape to save steel.

4 - The roots are small, the floor space is small, the land resources are saved, and the site selection is convenient.

5 - The tower body is light in weight, and the new three-leaf cutting board foundation reduces the basic cost.

6 - Truss structure design, convenient transportation and installation, and short construction period.

7 - The tower type is designed with the wind load curve changing, and the lines are smooth.

It is not easy to collapse in case of rare wind disasters, reducing human and livestock casualties.

8 - The design conforms to the national steel structure design specification and tower design rules, and the structure is safe and reliable.

Highlights of JIAYAO self-supporting tower

● Leading design concept.

● Versatility, modular design, flexible configuration of accessories.

● Tower group design, modification and adjustment.

● The tower section is universal, and the same tower section taken from the same mother tower is completely common in different tower types.

● Lower costs.

● Self-supporting tower light weight.

● Self-supporting tower installation cost is good.

● Self-supporting tower installation time is short.

● High reliability.

● The design and processing of JIAYAO's self-supporting tower products are in line with ISO 9001: 2000 quality management system.

● 50 years design life.

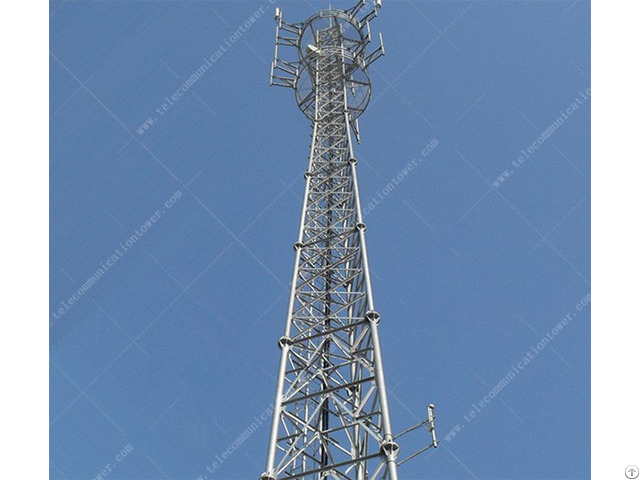

What Is The Details of JIAYAO 3 Legged Tubular Steel Tower?

Design standard TIA/EIA-222-G/F

Welding standard AWS D1.1

Galvanization standard ASTM A123

Design Wind Speed Up to 200 km/h

Angular steel

Material quality Mild Steel: Q235B/ASTM A36/S235JR High Steel: Q345B/ASTM A572/S355JR

Allowable deflection 0.5 ~1.0 degree

Bolt grade Gr 4.8, Gr 6.8, Gr 8.8

Marking Hydraulic Press Stamping

What is the height of JIAYAO 3 Legged Tubular Steel Tower we can provide? 5m up to 50m is the tower height we can provide.

What antenna can be mounted on JIAYAO 3 Legged Tubular Steel Tower? Type of antenna Description

Panel antenna (sector antenna) GSM antenna for 5G: 2.52m×0.265m×0.13m, 1.31m×0.32m×0.11m

Parabolic reflector(dish antenna) Microwave antenna Diameter: 0.6m, 0.9, 1.2m, 1.6m, 1.8m, 2.4m

RRU Radio Remote Unit: 0.45m×0.32m×0.25m

WIFI antenna Grid or parabolic directional antenna / yagi / omnidirectional antennas

Other Antenna VHF/UHF Dual-band Antenna FM antenna
