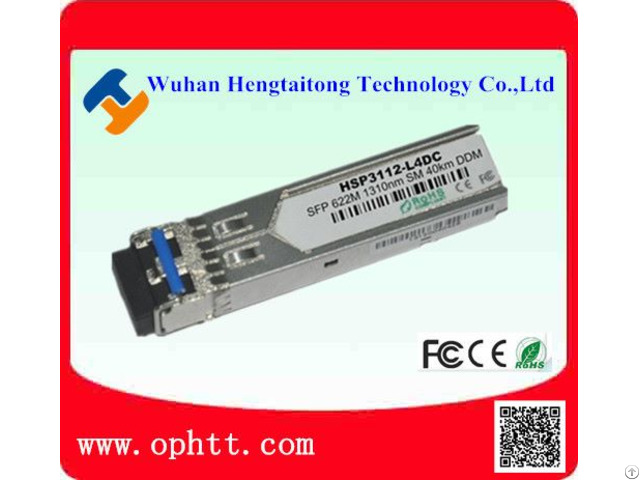

Sfp Duplex Lc 622m 1310nm 40km Fiber Optic Transceiver Module - China

Features

622Mbps data links

1310nm FP laser and PIN photo detector for 40km transmission

Compliant with SFP MSA and SFF-8472 with Duplex LC receptacle

Digital Diagnostic Monitoring: Internal Calibration or External Calibration

Compatible with SONET

+3.3V single power supply

Operating case temperature:

Standard : 0 to +70°C

Applications

SDH and SONET system

Fiber Channel

Switch to Switch interface

Router/Server interface

Other optical transmission systems

Description

The SFP transceivers are high performance, cost effective modules supporting data-rate of 622Mbps and 40km transmission distance with SMF.

The transceiver consists of three sections: a FP laser transmitter, a PIN photodiode integrated with atrans-impedance preamplifier (TIA) and MCU control unit.

All modules satisfy class I laser safety requirements.

The transceivers are compatible with SFP Multi-Source Agreement (MSA) and SFF-8472 - For further information, please refer to SFP MSA.
