Multi Channels Hdmi To 4rf Modulator - China

Outline

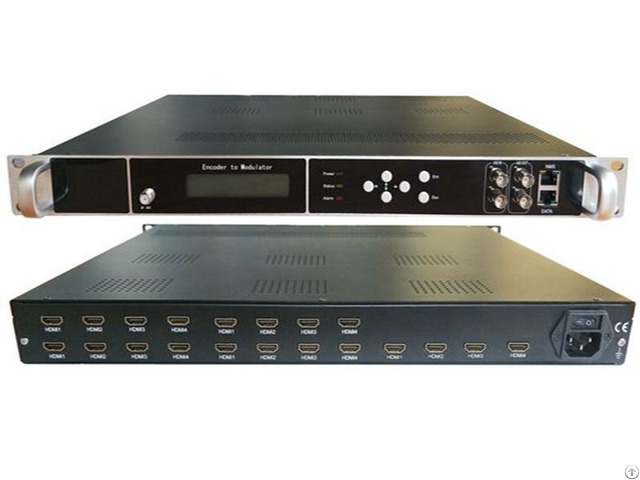

S6201-EM is a professional high integration device which includes encoding, multiplexing, and modulation.

It supports 4/8/12/16/20/24 HDMI input, 1000M IP ouput, 4 number RF output(ATSC, ISDBT, DTMBT, DVB-C/-T), 5 MPTS output and SPTS output。In conclusion, its high integrated and cost effective design makes the device widely used in varieties of digital distribution systems such as cable TV digital head-end, digital TV broadcasting etc.

Features

 4/8/12/16/20/24 HDMI input, MPEG-4 AVC/H.

264 Video encoding

 1000M IP output over UDP and RTP protocol(MPTS and SPTS)

 4 RF output, (ATSC, ISDBT, DTMBT, DVB-C/-T)

 2 ASI inputs  2 ASI Independent output (optional) as copy of 5MPTS  Support “Null PKT Filter” function

 Support PID Remapping/ PCR accurate adjusting

 PID pass

 LCD, key function

 Control via web management, and easy updates via web Technical Parameter

input HDMI(4/8/12/16/20/24 HDMI) 2 ASI inputs

output 4RF output(DVB-C/DVB-T/ATSC/I SDBT/DMBT) 2 ASI output IP output(SPTS and MPTS)IP output over UDP and RTP protocol video Encoding MPEG-4 AVC/H.

264 Resolution Input: 1920×1080_60P, 1920×1080_60i, 1920×1080_50P, 1920×1080_50i, 1280×720_60P, 1280×720_50P, 720×576_50i, 720×480_60i, Output: 1920×1080_30P, 1920×1080_25P, 1280×720_30P, 1280×720_25P, 720x576_25P, 720x480_30P Bit-rate 1Mbps~13Mbps(each channel) Rate Control CBR

Audio Encoding MPEG1 Layer2 Sampling rate 44.1KHz and 48Khz Bit-rate 64kbps, 128Kbps, 192kbps, 224kbps, 256kbps, 320kbps, 384kbps Resolution 24-bit Audio Gain 0-255 Adjustable

Multiplexing Maximum PID Remapping 180 output pids per channel Function PID remapping ( automatically or manually) Accurate PCR adjusting

Modulator DVB-T RF number 4 DVB-T Standard EN300744 FFT mode 2K bandwidth 6M, 7M, 8M Constellation QPSK, 16QAM, 64QAM Guard Interval 1/4, 1/8, 1/16, 1/32 FEC 1/2, 2/3, 3/4, 5/6, 7/8 MER ≥42 dB RF frequency 50~960MHz, 1KHz step Output level -34~ -10 dBm, 0.1db step DVB-C RF number 4 RF output Standard EN300 429/ITU-T J.

83A/B/C MER ≥40db RF frequency 50~960MHz, 1KHz step RFoutput level -34~-10dBm, 0.1dBm step Symbol Rate 5.0Msps~7.0Msps, 1ksps stepd J.

83A J.

83B/J.

83C Constellation 16/32/64/128/256QAM 64/256 QAM Bandwidth 8M 6M ATSC RF number 4 RF output Standard ATSC A/53 Bandwidth 6M Constellation 8VSB FEC RS(208 188)+Trellis MER ≥40dB RF frequency 50~960MHz, 1KHz step RFoutput level -34~-10dBm, 0.1dBm step ISDBT RF number 4 RF output Standard ARIB STD-B31 Bandwidth 6M Constellation QPSK, 16QAM, 64QAM Guard Interval 1/32, 1/16, 1/8, 1/4 Transmission Mode 2K Code rate 1/2, 2/3, 3/4, 5/6, 7/8 MER ≥40dB RF frequency 50~960MHz, 1KHz step RFoutput level -34~-10dBm, 0.1dBm step

System function Network management(WEB) Chinese and English language Ethernet software upgrade

Miscellaneous Dimension(W×L×H) 550mm×515mm×140mm weight 6kg Environment 0~45℃(work)；-20~80℃ (storage) Power requirements AC100~240V, 50/60Hz
