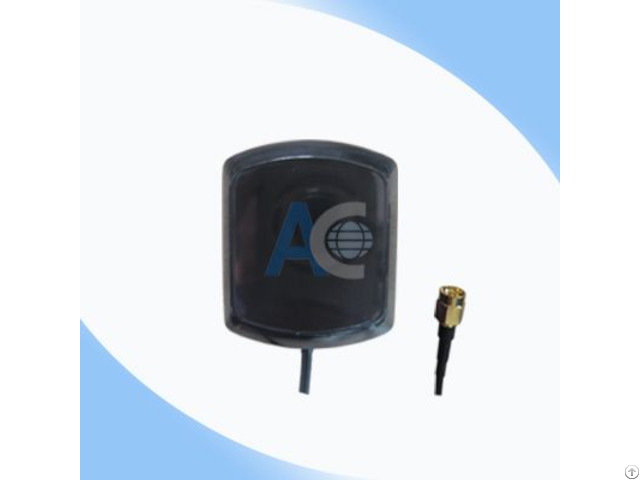

Gps Glonass Magnet Car Antenna - China
price: 2.00 Dollar US$
Electrical Dielectric Antenna Frequency 1575MHz/1602MHz
Center Frequency 1590MHz
V.S.W.
R 1.5: 1
Band width ±3 MHz
Impendence 50Ω
Peak Gain 5dBic Min/1575MHz
4dBic Min/1602~1616MHz
Gain Coverage ≥- 4dBic at -90°~90°(over75% volume)
Power Handling 1 watt
Polarization RHCP
LNA LNA Gain(Without cable) 32dB Typical Noise Figure 1.5dB
Filter Out Band Attenuation 12dB Min f0+50MHz
16dB Min f0-50MHz
V.S.W.
R ＜2.0
DC Voltage 2.7V/3.0V/3.3V/5.0V/3.0V to 5.0V/other
DC current 11mA Max
Mechanical Weight ＜100 G Antenna Dimension 49X39X15mm Cable RG174 Length 3 M or other Connector SMA/SMB/SMC/BNC/FME/TNC/M CX/MMCX or other Mount way Magnetic/Adhesive Housing Black
Environmental Operating Temperature -40℃~+85℃ Storage Temp.
-45℃~+100℃ Vibration Sine sweep 1g(0-p)10~50~10Hz each axis Humidity Humidity95%~100%RH Weatherproof IP67 Antenna Radome Material ABS RoHS Compliant YES
Company Contact:
- Posted By: Asian Creation Communication CO.,LTD
- Phone: +86-757-87668779
- Address: #12 Xing Ye 5 Road Nan Feng Da Dao,Sanshui, Foshan , Guangdong , China
- Email:
- Website: https://www.acantenna.com
Published date: June 28, 2017
- Business Description: antenna manufacturer, wifi antenna, 4g antenna, mimo antenna, 3g antenna, gsm antenna, gps antenna, 433mhz/315mhz antenna, pigtail cable and so on.
