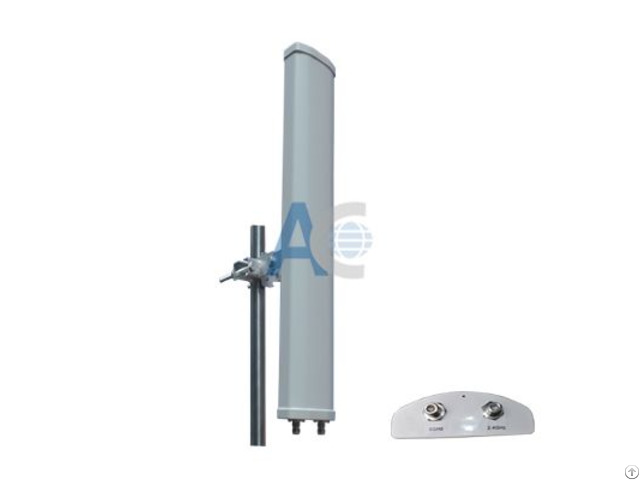

Dual Band Wlan Outdoor Sector Directional 90degree Antenna - China
price: 58.50 Dollar US$
Electrical Frequency Range 2300-2700MHz/5150-5850MHz
Band width 400MHz/700MHz
F/B Ratio ≥21dB
Gain 16/18dBi
V.S.W.
R ≤1.5type; Max 2.0
Radiation Direction
Horizontal Beam width 90°/90°
Vertical Beam width 13°/11°
Polarization Vertical Lightning Protection DC Grounded
Maximum Input Power 100W
Impedance 50Ώ
Connector 2xN Female
Antenna Radome Material PVC
Mount way Pole
Diameter of Installation Pole Ø30~Ø50mm
Mechanical Dimensions 720x120x60mm
Weight 2.6KG
Operating Temperature -40℃ to+80℃
Rated Wind Velocity 60m/s
RoHS Compliant YES
Company Contact:
- Posted By: Asian Creation Communication CO.,LTD
- Phone: +86-757-87668779
- Address: #12 Xing Ye 5 Road Nan Feng Da Dao,Sanshui, Foshan , Guangdong , China
- Email:
- Website: https://www.acantenna.com
Published date: October 15, 2018
- Business Description: antenna manufacturer, wifi antenna, 4g antenna, mimo antenna, 3g antenna, gsm antenna, gps antenna, 433mhz/315mhz antenna, pigtail cable and so on.
