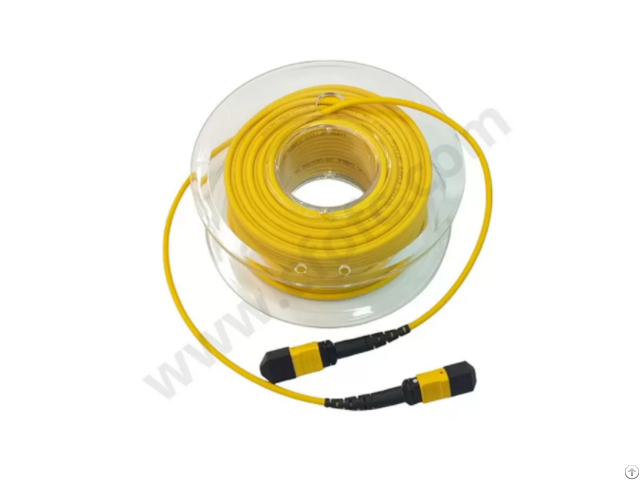

8f Os2 Singlemode Mpo Mtp Trunk Cable - China

MTP/MPO Trunk Cable is compact, high-density fiber optic connector assemblies designed for high-density applications.

Our MTP/MPO Trunks are suitable for applications up to 100G for connecting equipment or interconnecting modules/panels within a data center.

The MTP/MPO connectors come in Standard and Elite versions to accommodate various power budget requirements of our customers.

Feature:

USCONEC; SENKO; NISSIN; SUNCALL; Chinese brand

Different MT inserts available (Base-8, Base-12, Base-16, Base-24)

Color-Coded Connector Boots for Easy Identification

Corning ClearCurve® YOFC Fiber with 7.5mm Min.

Bend Radius

Available OFNR、 OFNP、 CPR (B1ca/ B2ca/ Cca/ Dca/ Eca)

Available in single sheath (2.0mm to 3.0mm, typically overall length ≤15m) and double sheath (4.5mm to 5.5mm)

RoHS2 Certification

Technical Parameters:

Connector A MTP® Female (Pinless) Connector B MPO Female (Pinless)

Polish Type UPC to UPC Glass Fiber Corning Clear Curve®

Fiber Mode OS2 SMF 9/125μm Wavelength 850/1300nm

Fiber Count 8 Fibers Polarity Type B

Cable Outside Diameter(OD) 3.0mm-17.3mm Cable Jacket Plenum(OFNP)

Min.

Bend Radius(Optical Fiber) 7.5mm Min.

Bend Radius (Fiber Cable) 20/10D(Dynamic/Static)


Connector Durablity 500 times Tensile Strength(Long/ShortTerm) 80/240N

Insertion Loss 0.35dB Max(0.15dB Typ.

) Return Loss ≥20dB

Attenuation at 850nm ≤2.3dB/km Attenuation at 1300nm ≤0.6dB/km

Operating Temperature -10 to 70℃(14 to 158F) Storage Temperature -40 to 85℃

Glass Fiber Corning, YOFC Operating Temperature -10 to +70°C

Applications:

HPC(High-Performance Computing)

Datacom

DC(Data Center)& Hyperscale DC

LAN and SAN Backbone Network

10G to 10G inter-connect/40G to 40G inter-connect/100G to 100G inter-connect of Base-12 or Base-24

800G QSFP-DD/OSFP DR8 and 800G OSFP XDR8 of Base-16
