Variable Fiber Optic Voa In Line Attenuator 0 60db - USA
price: 108.33 Dollar US$
The In-line Variable Optical Attenuator
The in-line variable optical attenuator (VOA) is manually-adjusted, used for precisely balancing the signal strengths in fiber circuits, or balancing an optical signal when evaluating the dynamic range of the measurement system.
Key Features
High Precise attenuation value
Perfect environmental stability and reliability
Low additional loss
Flawless end face
Wide attenuation range (variable) Applications
Fiber optical telecommunication system
FTTH, CATV, LAN
Subscriber loop
Fiber optical sensor
Testing equipment Technical Specifications
Wavelength: 1310 or 1550nm
Bandwith(nm): +/-40
Attenuation Range: 0.6~60dB
Original loss: <0.6dB
Precision: 0.02dB
PDL: <0.10dB
Return Loss: UPC: >55dB APC: >65dB
Cable option: 2mm cable
Connectors: FC/APC-FC/APC
Length: 2 meters
Operating temperature (℃): -40~ +70
Storage temperature (℃): -40 ~ +85

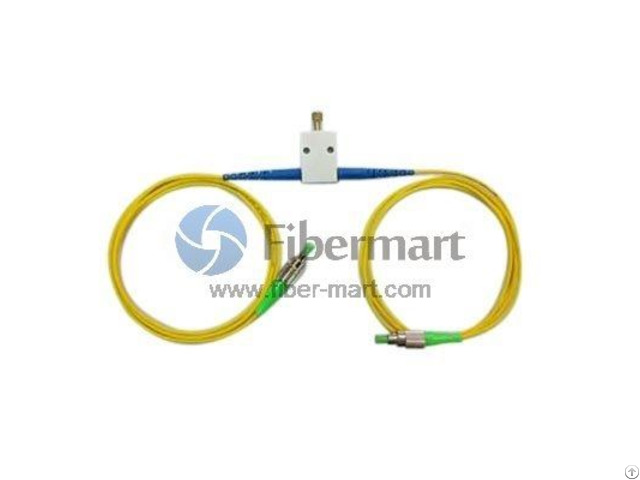

Dimensions (L×W×H mm): 26×8×18 Note: Picture is for FC/APC to FC/APC, please take it as reference.
Company Contact:
- Posted By: Fiber-MART.LLC
- Phone: + 86 13632576201
- Address: 118 East Melinda Lane, Phoenix, Arizona , USA
- Email:
- Website: https://www.fiber-mart.com
Published date: August 23, 2018
- Business Description: Fiber Optic Network, Fiber Transceiver,
Bulk fiber optic cables, Fiber tester and Tools, Cable Management
