Unmanaged Gigabit Media Converter 17slots Rack Chassis - China

Transmit10/100/1000Base-T Ethernet electrical signal through fiber, realize TX/FX converter.

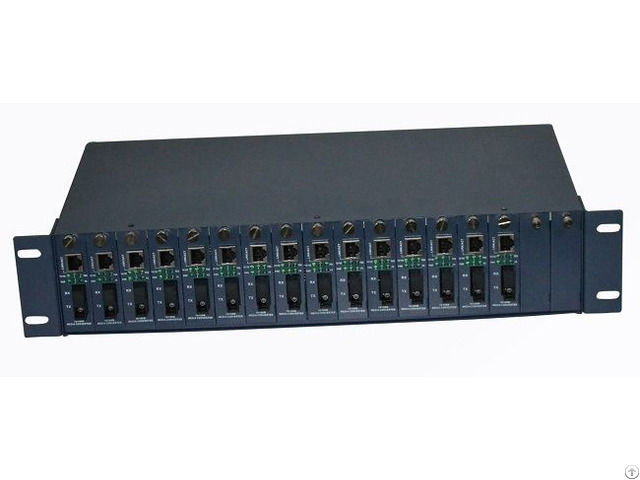

BD05 is a kind of media converter rack (2U) widely used in the equipment room.

Different types of media converter cards developed by our company can be inserted into this rack, which total slots up to 17 - It is furnished with two power supplies: main power supply and spare one, and supports its automatic switch-over.

Features: 1 - The configuration of active/standby power supply ensures uninterruptible operation of the system.

2 - Provide two power supplies (AC 220V, and DC -48V), enabling the system can work under many operating environments; 3 - Supporting simultaneous operation of several module type (module type) media converters at different rates, which greatly improves system adaptability; 4 - Each card supports hot swapping; 5 - Applicatory module types: BD-1000M series.

Parameter Specifications

Number of slots 17

Structure 2U rack

Power input AC Voltage: AC 85~265V; frequency: 50/60 Hz DC voltage: DC -36~72V

Power output DC5V 16A

Power configuration Single power supply, or dual power supply for warm backup mode

LED indication POWER (power supply)

Max power consumption 95W

Operating temperature -10~55iC

Operating humidity 5%~90%

Maintaining temperature -40~70iC

Maintaining humidity 5% ~ 90% non-condensing

Dimensions of rack 90mm (H) * 485mm (W) * 345mm (D)
