Uart Serial Ethernet Modules - China

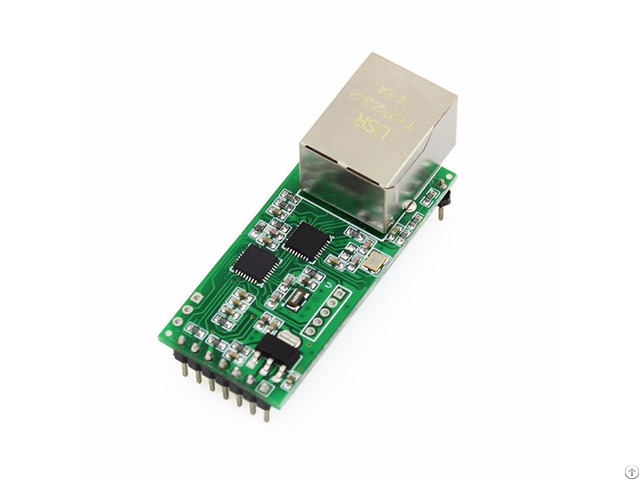

　　USR-TCP232-T2 are tiny size UART Serial Ethernet Modules which can realize data bidirectional transparent transmission between TTL and RJ45 Port.

It can also be applied in RS232/ RS485 by level shift circuit.

USR-TCP232-T2 is based on Cortex-M0 core.

It has characters of low power, fast speed and high efficiency.

　　-Support DHCP, automatically obtain an IP address and query IP address through serial setting protocol

　　-Support DNS function

　　-Set parameters through webpage and serial AT command

　　-Upgrade firmware via network

　　-Auto-MDI/MDIX, RJ45 port with 10/100Mbps

　　-Serial port baud rate from 600 bps to 460.8 Kbps, Check bit of None, Odd, Even, Mark and Space

　　-Work mode: TCP Server, TCP Client, UDP Client, UDP Server, HTTPD Client

　　-Support virtual serial port and provide corresponding software USR-VCOM

　　-Heartbeat package mechanism to ensure connection is reliable, put an end to dead link

　　-User-defined registration package mechanism, check connection status and use as custom packet header

　　-Under TCP Server mode, Client number ranges from 1 to 16; default number is 4

　　-The global unique MAC address bought from IEEE, user can define MAC address

　　-Restore factory default

　　-Across the gateway, switches, routers

　　-Can work in LAN, also can work in the Internet (external network)

　　-Provide PC TCP/IP socket programming example such as VB, C++, Delphi, Android and IOS

　　-Support customization
