Ti Cc3200 Wifi Module - China

　　The TI CC3200 WiFi Modules, used for data transparent transmission.

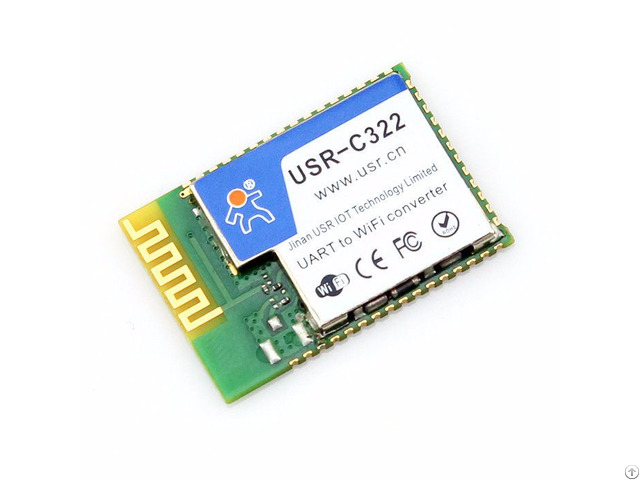

USR-C322 is a wifi module released by USR IOT, which has the features of minisize, low power and industry-grade.

The hardware of USR-C322 wifi module integrates MAC, baseband chip, RF transceiver unit and power amplifier.

　　USR-C322 wifi module is based on TI CC3200 chip, which has industrial ARM Cortex-M4 core and ultra-low power operation mechanism.

And it supports WiFi protocol and TCP/IP protocol.

User can achieve the function of UART devices connecting to Internet with simple configuration.

Based on ARM Cortex-M4 kernel, running frequency of 80 MHZ

　　·Support WEP, WPA/WPA2 security mode

　　·Support AP/STA working mode

　　·Support Simplelink/usrlink networking configuration

　　·Support custom webpage function

　　·The fully integrated serial to wifi TCP/UDP transmission function,the rate of serial port up to 3M bps

　　·Support two uart and three socket communication

　　·Support PC1 16 bytes encryption when work in transparent transmission mode

　　·Support HTTPD Client function

　　·Support websocket function

　　·Support SSL Client function

　　·Support search in local area network (LAN) and wireless parameters setting function

　　·Support TCP/UDP Client registration packet mechanism

　　·Support class RFC2217 automatic baud rate adaptation function

　　·Supports 485 transmission control

　　·Support AT+ simple instruction set configuration

　　·Single 3.3 V power supply

　　·Ultra low power mode, support deep dormancy

　　·Support internal/external antenna option

　　·Minisize: 18.22mm*26.65mm*2.8mm SMT

　　·FCC/CE/RoHS certificated
