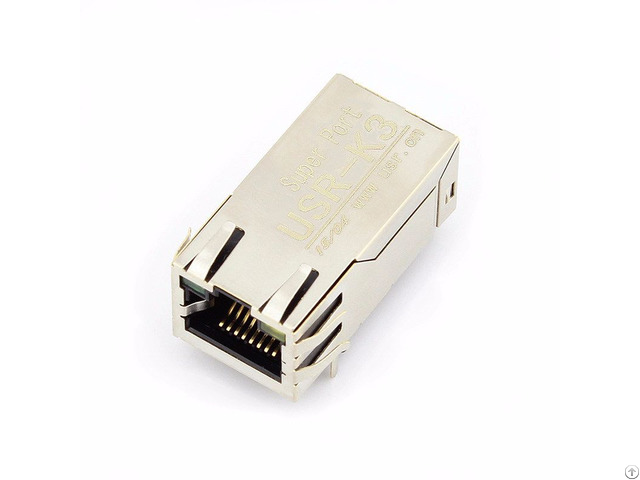

Super Port Ethernet Module - China

　　This is a serial TTL to Ethernet module, used for data transparent transmission.

USR-K3 is the high-performance and industrial version of Super Port.

It is an embedded serial networking module, whose function is to realize bidirectional transparent transmission between TTL and Ethernet.

The amazing part of K3 lies in its Ethernet port integration design.

You can apply K3 to your products to realize networking communication.

User can directly process data interaction through network and device to realize remote data acquisition, remote control and management.

　　-Cortex-M4 kernel, industrial working temperature range and TCPIP protocol stack.

　　-Auto-MDI/MDIX, RJ45 port with 10/100Mbps

　　-TCP Server, TCP Client, UDP Client, UDP Server and HTTPD Client work mode

　　-Support virtual serial port and provide corresponding software USR-VCOM

　　-Serial port highest baud rate from 600bps to 1024Kbps, Check bit of None, Odd, Even, Mark and Space

　　-DNS and DHCP supported

　　-Provide PC TCP/IP socket programming example such as VB, C++, Delphi, Android and IOS

　　-Built-in webpage;also can customize webpage for users

　　-RJ45 with Link/Data indicator light, built-in isolation transformer and 2 KV electromagnetic isolation

　　-The global unique MAC address bought from IEEE (begin with D8-B0-4C);user can define MAC address

　　-Support upgrade firmware via network

　　-Support keepalive, rapidly detect dead links

　　-Support account and password, can be used to page login and network settings

　　-Support Websocket, realize bidirectional transparent transmission bewteen webpage and serial

　　-Support Modbus RTU to Modbus TCP

　　-Support UDP broadcast function
