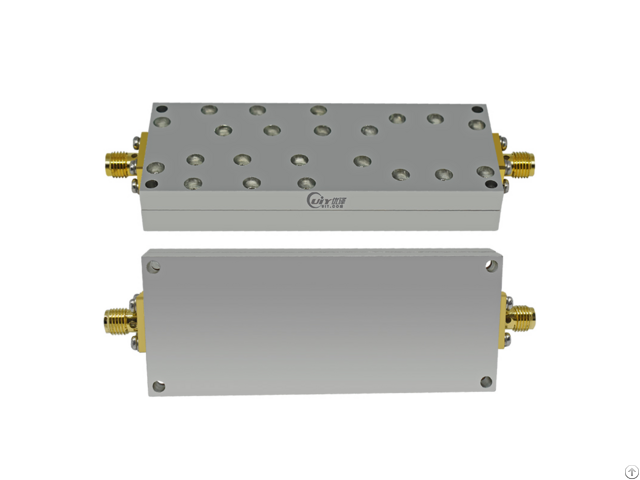

Rf Module Passive Device 5 285mhz Vhf Low Pass Filter - China
price: 136.00 Dollar US$
Model Number:
UIYLPF4012A5T285SF
Type:
RF Passive Low Pass Filter
Place of Origin:
Guangdong, China
Brand Name:
UIY
Transfer Function:
Low Pass Filter
Filter Type:
RF Passive VHF Low Pass Filter
Pass Band:
5-285MHz
Insertion Loss:
<2.0dB
Ripple:
1.0
VSWR:
<1.5
Rejection:
45dB @330-650MHz
Power:
5W
Connector:
SMA-Female
Temperature Range:
-40~+85℃
Dimension:
40.4*12*10mm
Warranty:
1 Year
Company Contact:
- Posted By: UIY Inc.
- Phone: +8675583748888
- Address: No. 8, lane 1, Xintun East Zone, Longgang District, 518172, Shenzhen , Guangdong Province, China
- Email:
- Website: https://www.uiy.com/
Published date: August 26, 2021
- Business Description: Professional Radio Frequency (RF) / Microwave Device Supplier
Professionally customized Radio Frequency (RF) / Microwave Components Manufacture.
UIY Inc.
was established in 2003 in Shenzhen, China, with the registered capital of 200 million yuan (about 32 million dollars).
It is an integrated enterprise, which includes research, production, marketing and service for the civilian and military microwave communications device.
The products are sold all over the world.
Product catalog:
Isolator / Circulator
Filter / Duplexer / Triplexer
Power Divider / Splitter
Hybrid Combiner / Directional Coupler
Coaxial Termination / Attenuator
Waveguide to Coaxial Adapter
Tx & Rx Multicoupler
Our products are in full compliance with RoHS, ISO9001 and ISO14001 international standard, with high-precision testing equipment and QC team, and we have established a strict quality control system.
We are committed to providing our customers with high-quality products for a long time.
