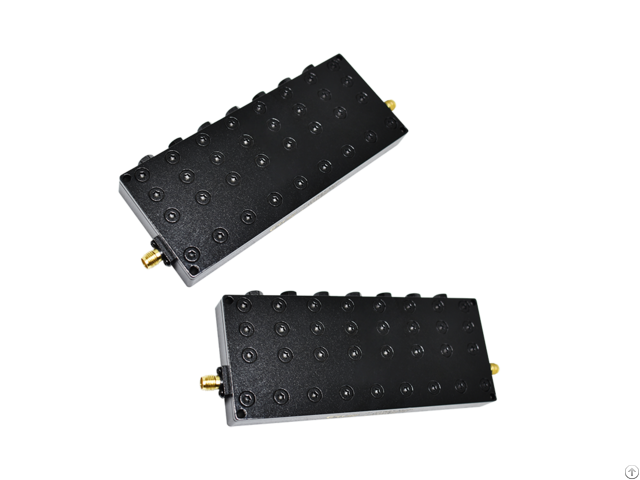

Rf Module Notch Filter - China
price: 556.00 Dollar US$
Model Number:
UIYBSF15867A868T870SF
Type:
RF Passive Filter
Place of Origin:
Guangdong, China
Brand Name:
UIY
Transfer Function:
Band Stop
Insertion Loss:
0.5dB, <0.5dB
Stopband Attenuation:
868-870MHz
Brand:
Band Stop Filter
Filter Type:
Notch
Technology:
Band Reject
Outer Dimension:
341.28cm³
Band Reject:
868-870MHz
Band Reject Rejection:
>50dB
Pass Frequency:
DC~821MHz & 925~1200MHz
VSWR:
<1.3
Power:
50W
Connector:
SMA-Female or N-Female
Temperature Range:
-30~+70℃
Dimension:
158*67*43mm
Warranty:
1 Year
Company Contact:
- Posted By: UIY Inc.
- Phone: +8675583748888
- Address: No. 8, lane 1, Xintun East Zone, Longgang District, 518172, Shenzhen , Guangdong Province, China
- Email:
- Website: https://www.uiy.com/
Published date: August 26, 2021
- Business Description: Professional Radio Frequency (RF) / Microwave Device Supplier
Professionally customized Radio Frequency (RF) / Microwave Components Manufacture.
UIY Inc.
was established in 2003 in Shenzhen, China, with the registered capital of 200 million yuan (about 32 million dollars).
It is an integrated enterprise, which includes research, production, marketing and service for the civilian and military microwave communications device.
The products are sold all over the world.
Product catalog:
Isolator / Circulator
Filter / Duplexer / Triplexer
Power Divider / Splitter
Hybrid Combiner / Directional Coupler
Coaxial Termination / Attenuator
Waveguide to Coaxial Adapter
Tx & Rx Multicoupler
Our products are in full compliance with RoHS, ISO9001 and ISO14001 international standard, with high-precision testing equipment and QC team, and we have established a strict quality control system.
We are committed to providing our customers with high-quality products for a long time.
