Power Over Coax Eoc Ethernet Modem Hzw E21 01 - China
price: contact company for price
We are authorized trader, supplier and exporter of Power Over Coax EOC
Ethernet Modem HZW- E21- 01 in Shenzhen, Guangdong, China available with
following details.
Product Features:
•Provides one 10/ 100M auto sensing Ethernet interfaces to connect devices such as computer, set- top box, IP phone, etc.
•Provides 2 Cable interfaces to separately connect Uplink and Downlink Cable line
•Built- in CATV signal split filter
•Occupies Low Frequency Band .
No influence on the pre- existing CATV signal
•No user profile needed.
Plug and play
•Supports VLAN configuration
Technical Parameters:
Interface
1 10/ 100M autosensing Ethernet interfaces ( Auto MDI/ MDIX)
2 metric thread Cable interfaces
1 external power interface
Indicator: Lan: 1 Cable: 2 Power: 1
Radio frequency
Frequency range: 7.5- - 30MHz/ 7.5- - 65MHZ Maximum output power: 15 dBm Receiving sensibility: - 65 dBm
Interface type: F type female connector socket
Output impedance: 75Ω
QoS
IEEE 802.3, IEEE 802.3x, IEEE 802.3u Auto MDI ( X)
IEEE802.1P, IEEE802.1Q
Company Contact:
- Posted By: Shenzhen Hua-Net Technology Co.,Ltd
- Phone: 86013757160591
- Address: 2F,C Building,HuahaoTai Industrial Park,Longhua, Shenzhen , China
- Email:
- Website: http://www.hua-network.com
Published date: April 18, 2016
- Business Description: Shenzhen H-NET Technology CO.
Ltd.( short for H-NET), is one of the leading manufacturers of IP Networking products in China.
The company headquarter lies in Shenzhen and business offices are established in main cities all over the country.
Now we have established two R&D centers in Shenzhen and Shanghai, with professional R&D engineer team to develop and improve our technology and products.
Our current items cover EPON, GPON, SFP, Gigabit Ethernet Switches and Network Security Products.
Related listings
-
Ethernet Single Fiber Media Converter Optic Network Switches 20kmCommunications - Equipment - Shenzhen Hua-Net Technology Co.,Ltd - China - April 15, 2016 - contact company for priceOverview The PoE Switch is 8- port 10/ 100Mbps PoE switch with 8 port PoE. The PoE ports can automatically detect and supply power to IEEE802.3af/ at compliant Powered Devices ( PD) . The electrical power and data transmission on the same cable can e...
-
Golden Supplier Hua Net Technologies Company 10 100m Ethernet Over Coaxial Eoc ConverCommunications - Equipment - Shenzhen Hua-Net Technology Co.,Ltd - China - April 15, 2016 - contact company for priceProduct Overview 1 port Slave coaxial cable network unit is a HUA- NETAtheros 6400 / 7400 chip scheme EOC ( Ethernet over Coax) Slave which can be networking with Master coaxial cable terminal ( Master) . They can build Layer- 2 Ethernet transmit net...
-

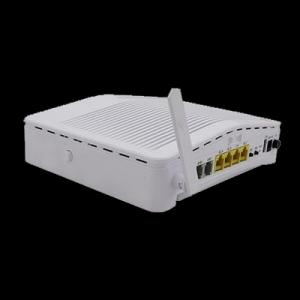

Hua Net High Quality Epon OnuCommunications - Equipment - Shenzhen Hua-Net Technology Co.,Ltd - China - April 13, 2016 - contact company for priceSpecial features: •Plug and play, features auto- detecting, auto- configuration, and auto firmware upgrade, etc. •Integrated OAM remote configuration and maintenance function. •Support rich QinQ VLAN functions and IGMP Snooping multicast featur...
