Polarizaion Maintaining Fiber - China
price: 15.00 Dollar US$
Polarizaion maintaining fiber collimator
features
low insertion loss high extinction ratio high stability and reliability applications
pm isolators collimator fiber laser
performance specifcations
parameters wavelength(nm) 1310nm, 1550nm 980nm, 1064nm insertion loss (typ.
) (db) 0.2 0.3 insertion loss (max.

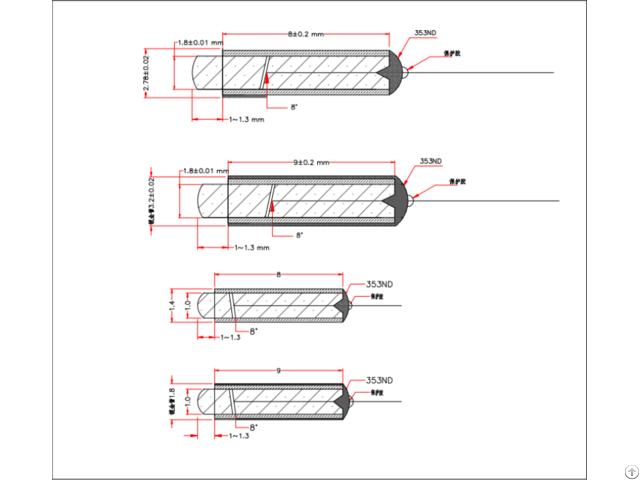

) (db) 0.25 0.35 return loss(db) ≥60 extinction ratio ≥23 beam diameter ＜0.5 operating temperature(℃) -20℃ ~ +75℃ storage temperature (℃) -40℃ ~ +85℃ optical fiber model pm1310/pm1550 pm980/hi1060 polarization dependent loss(db) ≤0.15 directivity(db) ≤0.1 maximun power handling(w) 0.5, 1, 2, 5, 10, 20, 30 dimensions(mm) 1.4*8 , 1.8*8 , 2.78*8, 3.2*9
Company Contact:
- Phone: +8607713121055
- Address: Room 3-3, No. 17 MingYang Fifth Road, MingYang Industrial Area, Wuxu Town,, Nanning , China
- Email:
- Website: https://www.xhphotoelectric.com
Published date: August 29, 2022
- Business Description: Optical Switch, Optical Protection, optical-power signal acquisition equipment, Optical Attenuator, stable light sources, wavelength division multiplexers, circulators, optical fiber collimators, optical fiber jumpers, optical cable monitoring systems, distributed optical fiber temperature measurement systems (DTS), optical fiber grating sensors and other optoelectronic products.
