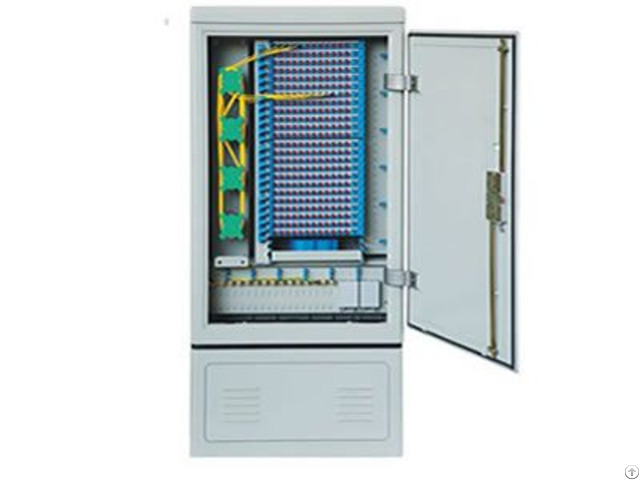

Optical Cross Connect Cabinet 144 Core - China

Optical Cross Connect Cabinet 144 Core Specification

Name: Optical Cross Connect Cabinet 144 Core Working wavelength: 850nm 1310nm 1550nm.

Connector loss (Including interchangeability and repetition): ≤0.5dB.

Return loss: APC movable connector≥60dB, UPC movable connector≥50dB, PC movable connector≥45dB.

Pull and insertion service life: no mechanical damage after 500 times of pulling and inserting repeatedly.

Additional loss of insertion ≤0.2dB, return loss≤5dB.

Withstand voltage between high voltage protective grounding device and frame≥3000V(D.

C)/1min, No breakdown, No flash-over.

Insulation resistance between high voltage protective grounding device and frame≥1000MΩ/500V(D.

C) .

Model No.

Dimensions(Mm) Max Capacity Configuration(Capacity/Sp litting Pot)

Type A 1035×550×300 144/128

Type B 1540×760×360 288/256

Type C 1540×760×620 576/512 Features

1 - The shell of this equipment is made of SMC fiber reinforced unsaturated polyester material, and the surface is sprayed with protective paint, which is characterized by heat insulation and fog condensation of waterproof gas, can effectively prevent rain, snow, insects and corrosive gases and other environmental impact; 2 - All modular design, easy expanded and installed, configured on demand with flexible application, and the cost is reduced; 3 - The first -level optical splitters are installed inside; 4 - The optical sub-unit is added to meet the needs of optical fiber point-to-point and point-to-multi point integrated development; Optical fiber adapter: SC type.

5 - Technical Index:

Connector loss (Including interchangeability and repetition): ≤0.5dB Return loss: APC movable connector≥60dB, UPC movable connector≥50dB, PC movable connector≥45dB.

Pull and insertion service life: no mechanical damage after 500 times of pulling and inserting repeatedly.

Additional loss of insertion ≤0.2dB, return loss≤5dB Withstand voltage between high voltage protective grounding device and frame≥3000V(D.

C)/1min, No breakdown, No flash-over.

Insulation resistance between high voltage protective grounding device and frame≥1000MΩ/500V(D.

C) Application

Widely used in FTTX optical fiber access network, which can realize the installation of optical fiber and the layout of household optical cables.

Patch cord-free effectively solves the disadvantages of traditional wiring equipment, reduces communication failure points and insertion loss, improves network security, increases equipment capacity, facilitates line management and capacity expansion, reduces costs.
