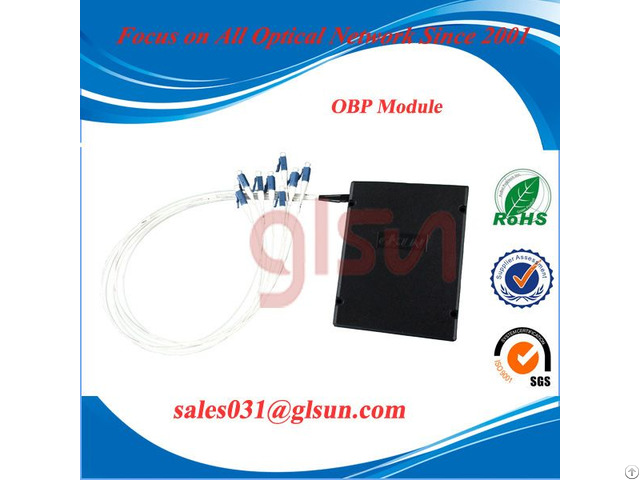

Optical Bypass Protection System Module Obp - China
price: check with company for price
Optical Bypass Protection System Module OBP Module Features
·Wide Wavelength Range
·Low Crosstalk
·High Stability, High Reliability
·Modularized Design Specifications Parameters Unit SUN-OBP-SS-L
Wavelength Range nm 1260 ~ 1650
Test Wavelength nm 1310 / 1550
Insertion Loss dB Typ: 1.2 Max: 1.5
Return Loss dB SM ≥ 45
Crosstalk dB SM ≥ 50
PDL dB ≤ 0.20
WDL dB ≤ 0.30
PD dark current nA ＜1
PD responsivity mA/W 24 ~ 40
PD report accuracy dB ±0.5 (at -50 to 23 dBm)
Operating voltage V 4.5 ~ 5.5
Operating current mA 80 ~ 120
Operating Temperature ℃ -5 ~ +60
Storage Temperature ℃ -30 ~ +80
Dimension mm 120×80×18
Company Contact:
- Posted By: GLSUN SCIENCE AND TECH CO.,LTD.
- Phone: 18607731315
- Address: Guanglong S&T Zone, No. 8 High-tech Industry Park, Chaoyang Road, Guilin , Guangxi , China
- Email:
- Website: https://www.glsun.com
Published date: April 26, 2018
- Business Description: Product lines include Optical Switches, Free Space Isolator, MEMS VOA, CWDM/DWDM components, Optical Modules and Custom Optical test systems.
