Online Pon Detection Optical Time Domain Reflectometer Otdr - China

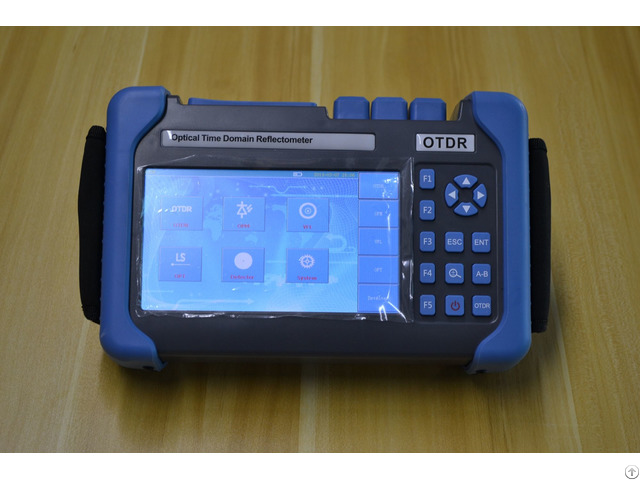

BD3000-T4 Optical Time Domain Reflectometer (OTDR) is an intelligent meter of a new generation for the detection of fiber communications systems.

With the popularization of optical network construction in cities and countrysides, the measurement of optical network becomes short and disperse; The BD3000-T4 is specially designed for that kind of application.

It’s economic, having outstanding performance.

The ODTR is manufactured with patience and carefulness, following the national standards to combine the rich experience and modern technology, subject to stringent mechanical, electronic and optical testing and quality assurance; in the other way, the new design makes ODTR more smart and compact and multi-purpose.

Whenever you want to detect link layer in the construction and installation of optical network or proceed efficient maintenance and trouble shooting, the ODTR can be your best assistant.

Features: 1 - Integrated design, smart and rugged.

2 - Small and light, easy to carry.

3 - 1625nm online detection module with filter is available as a option for a online FTTx/PON detection.

4 - Multi-measuring modes, simple to use, finish measurement by just one button.

5 - Realtime measuring function, convenient to monitor the splicing process.

6 - Internal large power visual laser source for accurate positioning the closer fault point.

7 - Internal stable laser source.

8 - Optical power meter function is offered as a option.

9 - Warnning function could prevent module of OTDR damaged by optical signal.

10 - Integrated with Screenshot function.

11 - PC Remote access and control function is available via RJ45 interface.

12 - Support multi-language display and input, friendly interface, visual keyboard capable.

13 - Integrated with large internal memory.

14 - Provide data simulation software to process, generate and print report.

15 - Battery indicator function.

16 - IP65 protection level, outdoor enhanced.

Dimension 253×168×73.6mm1.5kg (battery included)

Display 7 inch TFT-LCD with LED backlight (touch screen function is optional)

Interface 1×RJ45 port, 3×USB port (USB 2.0, Type A USB×2, Type B USB×1)

Power Supply 10V(dc), 100V(ac) to 240V(ac), 50~60Hz

Battery 7.4V(dc)/4.4Ah lithium battery (with air traffic certification)Operating time: 12 hours, Telcordia GR-196-CORECharging time: <4 hours (power off)

Power Saving Backlight off: Disable/1 to 99 minutesAuto shutdown: Disable/1 to 99 minutes

Data Storage Internal memory: 4GB (about 40, 000 groups of curves)

Language User selectable (English, Simplified Chinese, traditional Chinese, French, Korean, Russian, Spanish and Portuguese-contact us for availability of others)

Environmental Conditions Operating temperature and humidity: -10℃~+50℃, ≤95% (non-condensation)Storage temperature and humidity: -20℃~+75℃, ≤95% (non-condensation)Proof: IP65 (IEC60529)

Accessories Standard: Main unit, power adapter, Lithium battery, FC adapter, USB cord, User guide, CD disk, carrying caseOptional: SC/ST/LC adapter, Bare fiber adapter

Technical parameter Type Testing Wavelength (MM: ±20nm, SM: ±10nm) Dynamic Range (dB) Event Dead-zone (m) Attenuation Dead-zone (m) BD3000-T4 1310/1550/1625 37/36/36 0.8 8/8/8 Test parameter Pulse Width Single mode: 5ns, 10ns, 20ns, 50ns, 100ns, 200ns, 500ns, 1μs, 2μs, 5μs, 10μs, 20μs

Testing Distance Single mode: 100m, 500m, 2km, 5km, 10km, 20km, 40km, 80km, 120km, 160km, 240km

Sampling Resolution Minimum 5cm

Sampling Point Maximum 128, 000 points

Linearity ≤0.05dB/dB

scale Indication X axis: 4m~70m/div, Y axis: Minimum 0.09dB/div

Distance Resolution 0.01m

Distance Accuracy ±(1m+measuring distance×3×10-5+samplin g resolution) (excluding IOR uncertainty)

Reflectance Accuracy Single mode: ±2dB, multi-mode: ±4dB

IOR Setting 1.4000~1.7000, 0.0001 step

Units Km, miles, feet

OTDR Trace Format Telcordia universal, SOR, issue 2 (SR-4731)OTDR: User selectable automatic or manual set-up

Testing Modes Visual fault locator: Visible red light for fiber identification and troubleshootingLight source: Stabilized Light Source (CW, 270Hz, 1kHz, 2kHz output)Field microscope probe

Fiber Event Analysis -Reflective and non-reflective events: 0.01 to 1.99dB (0.01dB steps)-Reflective: 0.01 to 32dB (0.01dB steps)-Fiber end/break: 3 to 20dB (1dB steps)

Other Functions Real time sweep: 1HzAveraging modes: Timed (1 to 3600 sec.

)Live Fiber detect: Verifies presence communication light in optical fiberTrace overlay and comparison VFL Module (Visual Fault Locator, as standard function): Wavelength (±20nm) 650nm

Power 10mw, CLASSIII B

Range 12km

Connector FC/UPC

Launching Mode CW/2Hz
